Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-31
Service Parts Disassembly
Upper Link Pivot Shaft Kit
PL1.2.96 (Kit Shaft Link Front [Upper])
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Duplex Unit (page 8-162).
4. Remove the Right front holder (page 8-25)
5. Remove the Left front holder (page 8-28).
Note
Left upper link pivot replacement is possible without disconnecting the
Duplex Harness (P/J272) from the Left front holder.

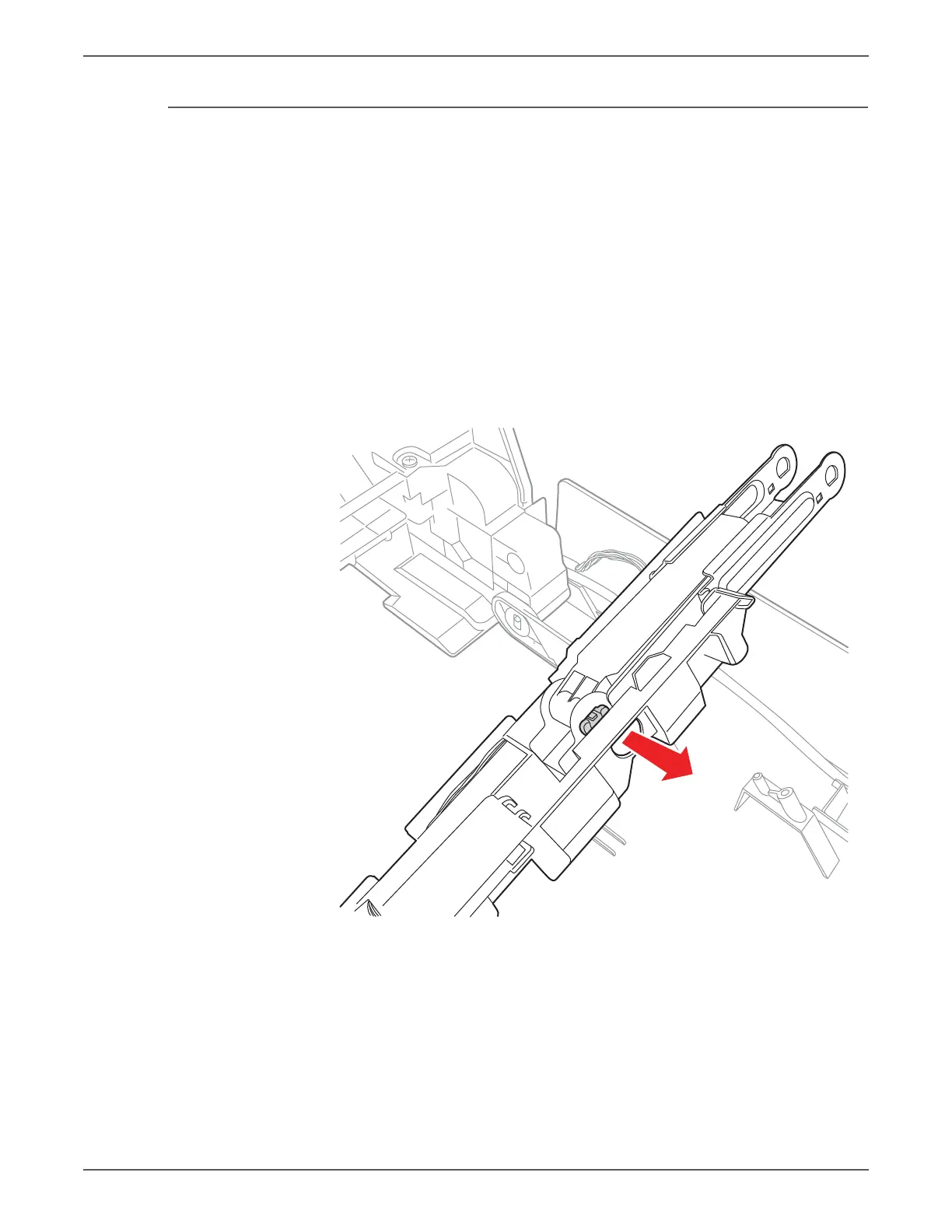

6. Release the hook that secures each pivot shaft in the link and remove the pivot
shaft.
s6500-206

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
