Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-151
Service Parts Disassembly
MFP Control Panel
MFP PL1.2.3 (Console Assy Panel)
1. Turn Off power and disconnect the power cord from the wall outlet.
2. Open the Front Cover.
3. Remove the Duplex Unit if installed.

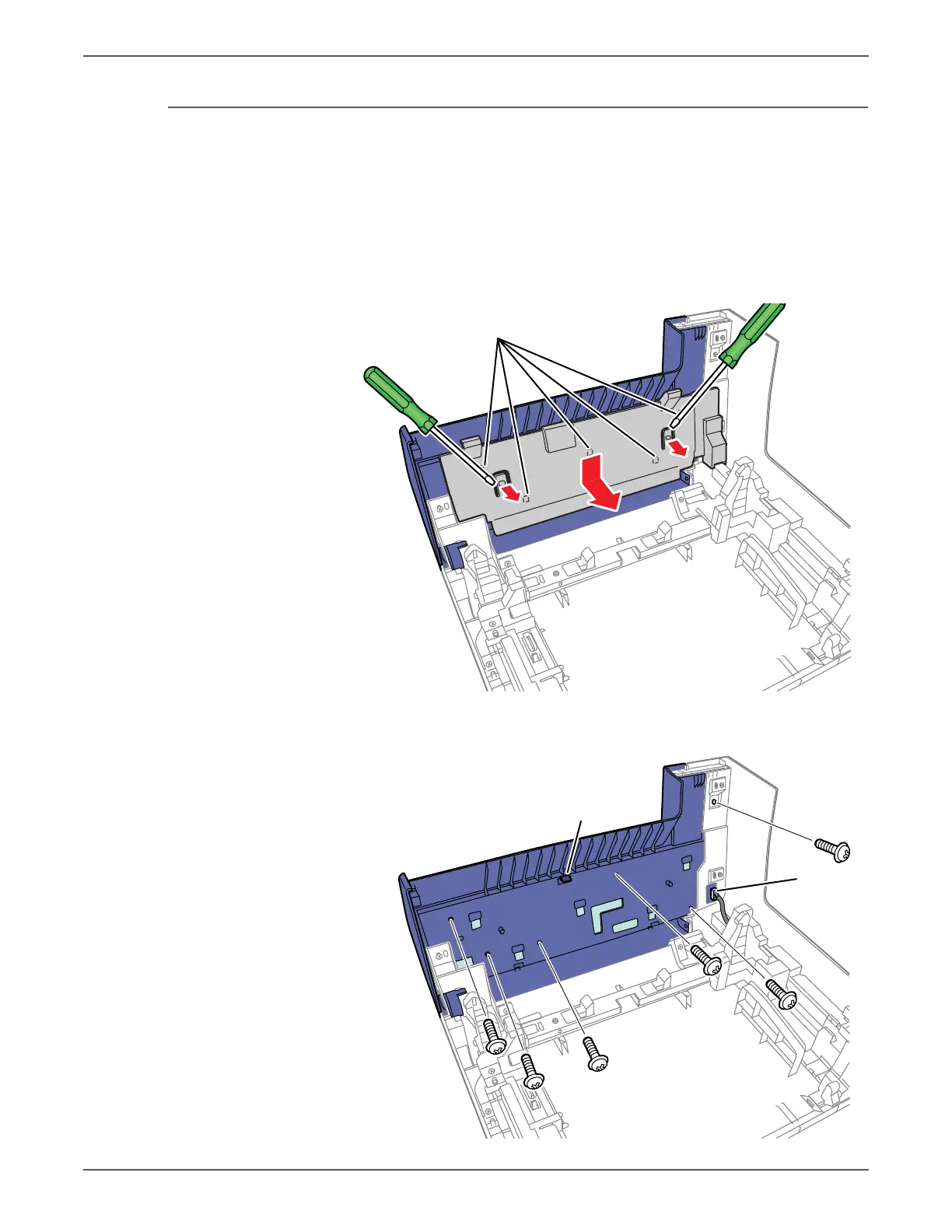

4. Release the two bosses on the Inner Front Cover using a small screwdriver.
5. Allow the Inner Front Cover to drop to release the five hooks, then remove the
cover.
6. Disconnect P/J202, and remove the six screws (silver, tap, 8mm), that secure
the Control Panel to the Front Cover.
s6500-475
s6500-474
Hooks
s6500-475
Hook
P/J202

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
