Xerox WorkCentre 6505 Service Manual

8-142 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
MFP IP Board Shield
MFP PL 8.1.7 (Shield Assy ESS AIO)
1. Perform the service preparation steps on page 8-3.
2. Open the MFP Front Cover.
3. Remove the MFP Left Side Cover (page 8-37).
4. Remove the MFP Outer Pole Cover (page 8-39).

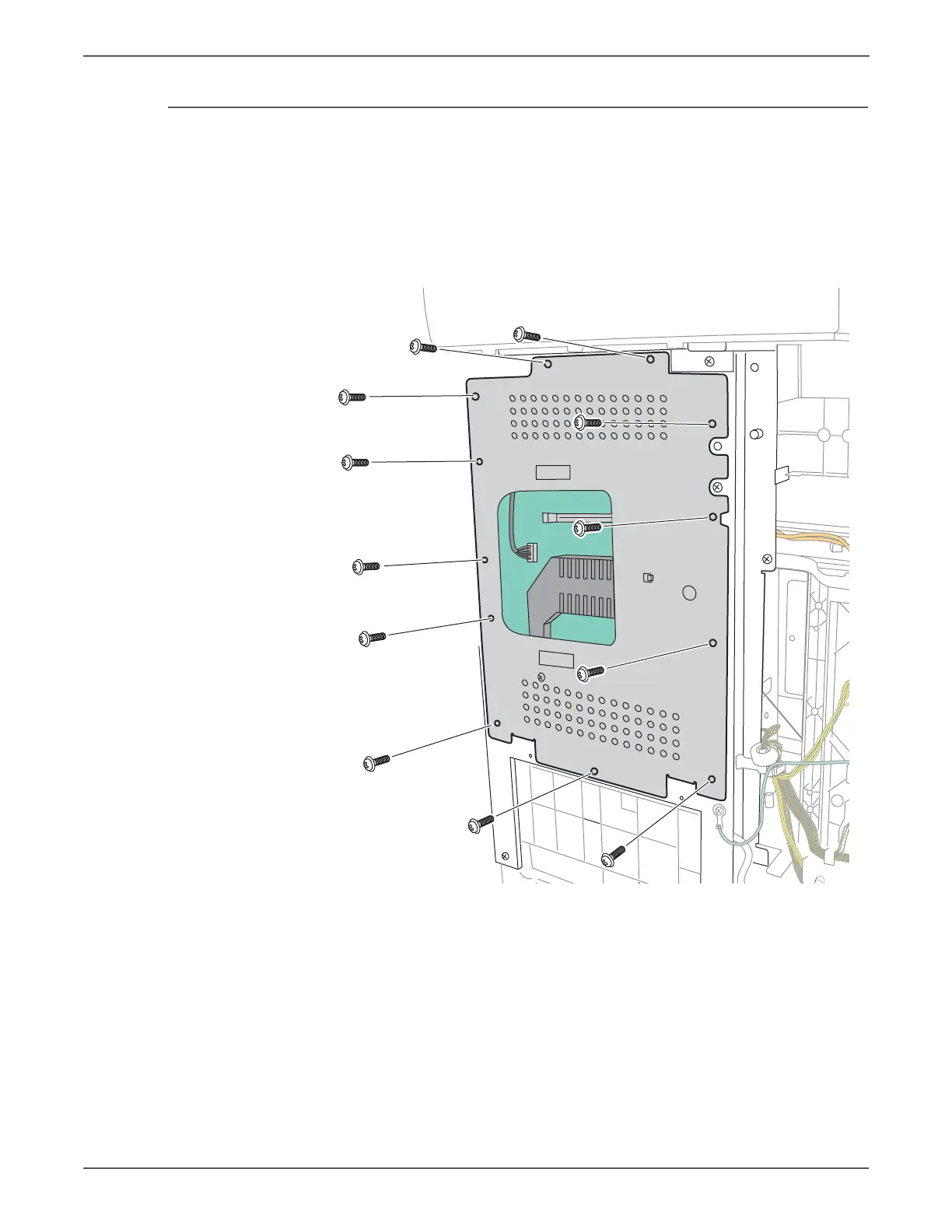

5. Remove the 12 screws that secure the IP Board Shield to the chassis.
6. Lift the shield to release the 2 tabs at the bottom and remove the shield.
s6500-330s6500-330
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
