Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-131
Service Parts Disassembly
SFP AC Power Inlet and Power Switch Harness
SFP PL8.2.9 (Harn Assy SW Power [SW-J48, Jr82, J483], 100 & 200)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Top Cover (page 8-15).
4. Remove the Right Side Cover (page 8-17).
5. Remove the Left Side Cover (page 8-18).
6. Remove the Rear Tray Cover (page 8-19).
7. Remove the Rear Cover (page 8-20).

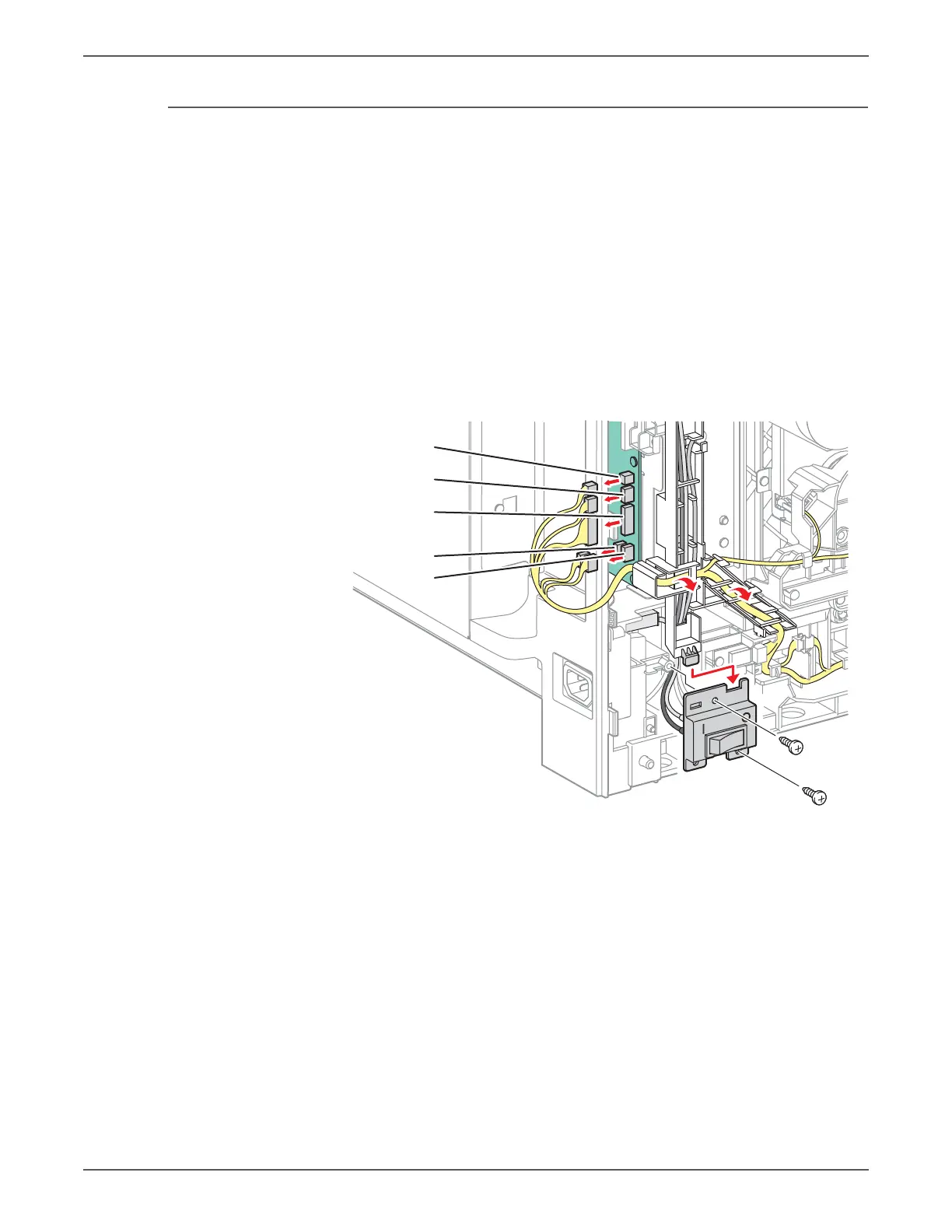

8. Disconnect P/J20, 23, 24, 26, and 28 on the MCU Board and release the
harness from the AC Harness Guide.
9. Remove two screws (silver, tap, 8 mm) that secure the power switch bracket,
and release the bracket with switch from the hook on the chassis.
s6500-314
P/J24
P/J26
P/J23
P/J20
P/J28
