8-20 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
SFP Rear Cover

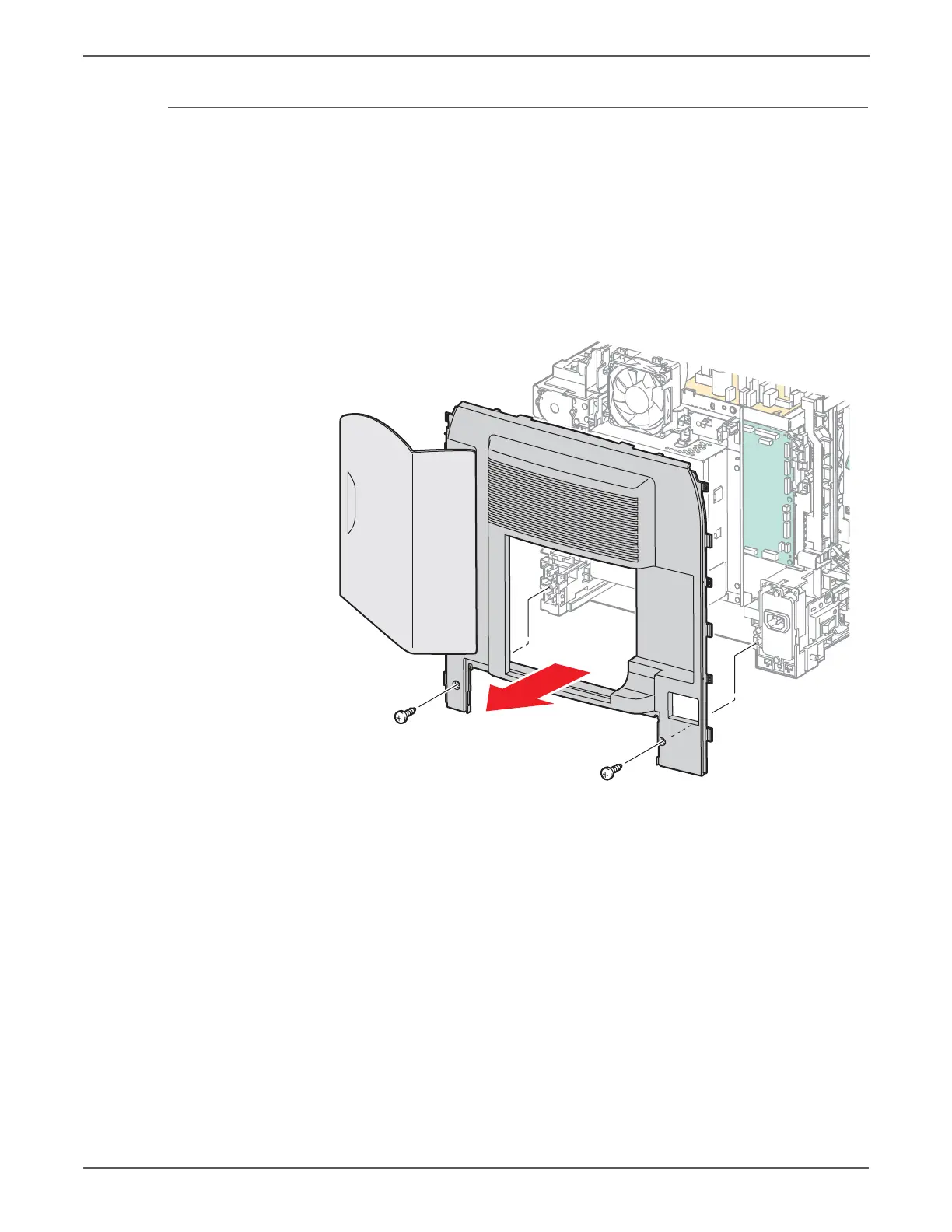

SFP PL1.1.3 (Cover Rear)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Right Side Cover (page 8-17).
4. Remove the Left Side Cover (page 8-18).
5. Remove the Rear Tray Cover (page 8-19).
6. Remove two screws (silver, tap, 8mm) that secure the Rear Cover.
7. Remove the Rear Cover.
s6500-186
