Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 2-53

Theory of Operation

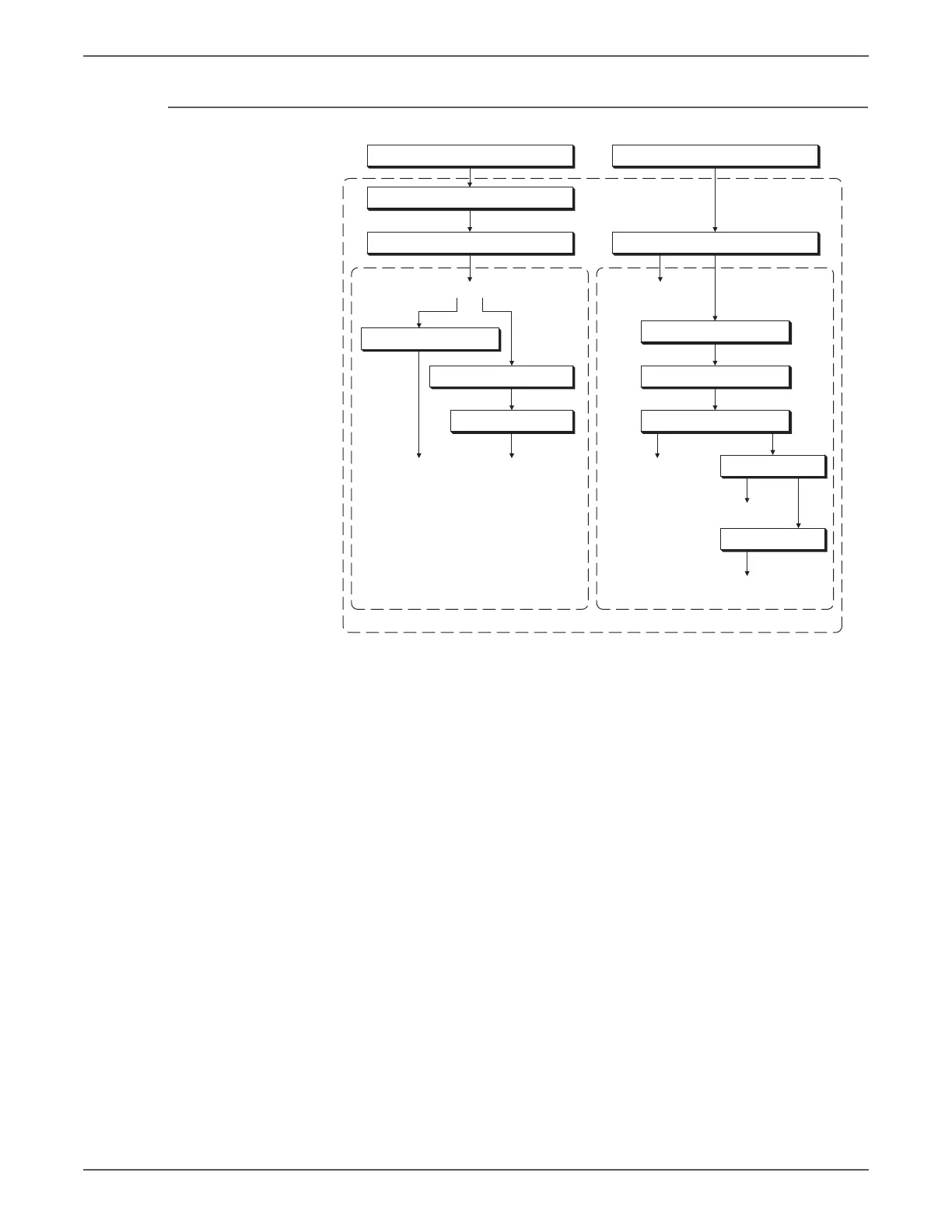

Development and Toner Collection

s6500-066

Main Drive Sub Drive

Imaging Unit Gear 1

Xerographics Housing (Y, M, C, K)

[ Drum ]

Imaging Unit Gear 2

Cleaning Auger Gear

Magnet Idler Gear

Paddle Idler Gear

Paddle Gear

Auger Gear

Side Auger Idler Gear

Side Auger Gear

[ Side Cleaning Auger ] [ Developer Paddle ]

[ Auger Front ]

[ Auger Rear ]

[ Auger ]

Developer Housing (Y, M, C, K)

[ Magnet Roller ]

Magnet Gear (Y, M, C, K)

Imaging Unit
