Xerox WorkCentre 6505 Service Manual

8-22 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

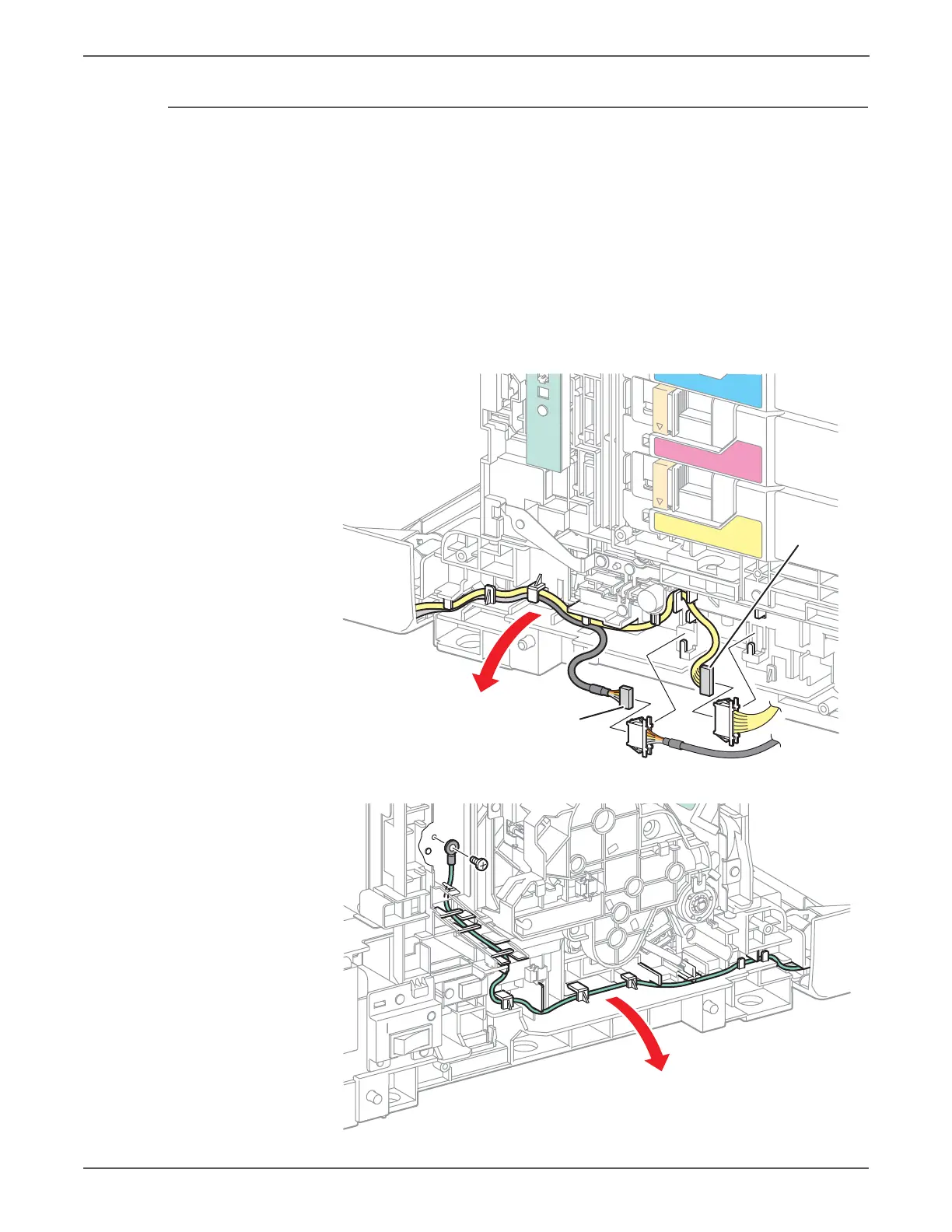

SFP Front Cover
SFP PL1.2.1 (Cover Assy Front)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Toner Door (page 8-21).
4. Remove the SFP Right Side Cover (page 8-17).
5. Remove the Left Side Cover (page 8-18).
6. Disconnect P/J5301 leaving the relay connector on the Front Cover side
7. Disconnect P/J271 (Duplex model only) leaving the relay connector on the
printer side.
8. Release the harnesses from the guides.
9. Remove the screw that secures the ground harness to the chassis.
s6500-192
P/J5301
P/J271
s6500-193
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
