Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-135
Service Parts Disassembly
SFP Toner Door Switch
PL5.1.9 (Switch)
1. Turn Off power and disconnect the power cord from the wall outlet.
2. Open the Front Cover.
3. Remove the Top Cover (page 8-15).
4. Remove the Right Side Cover (page 8-17).
5. Remove the Toner Door (page 8-21).

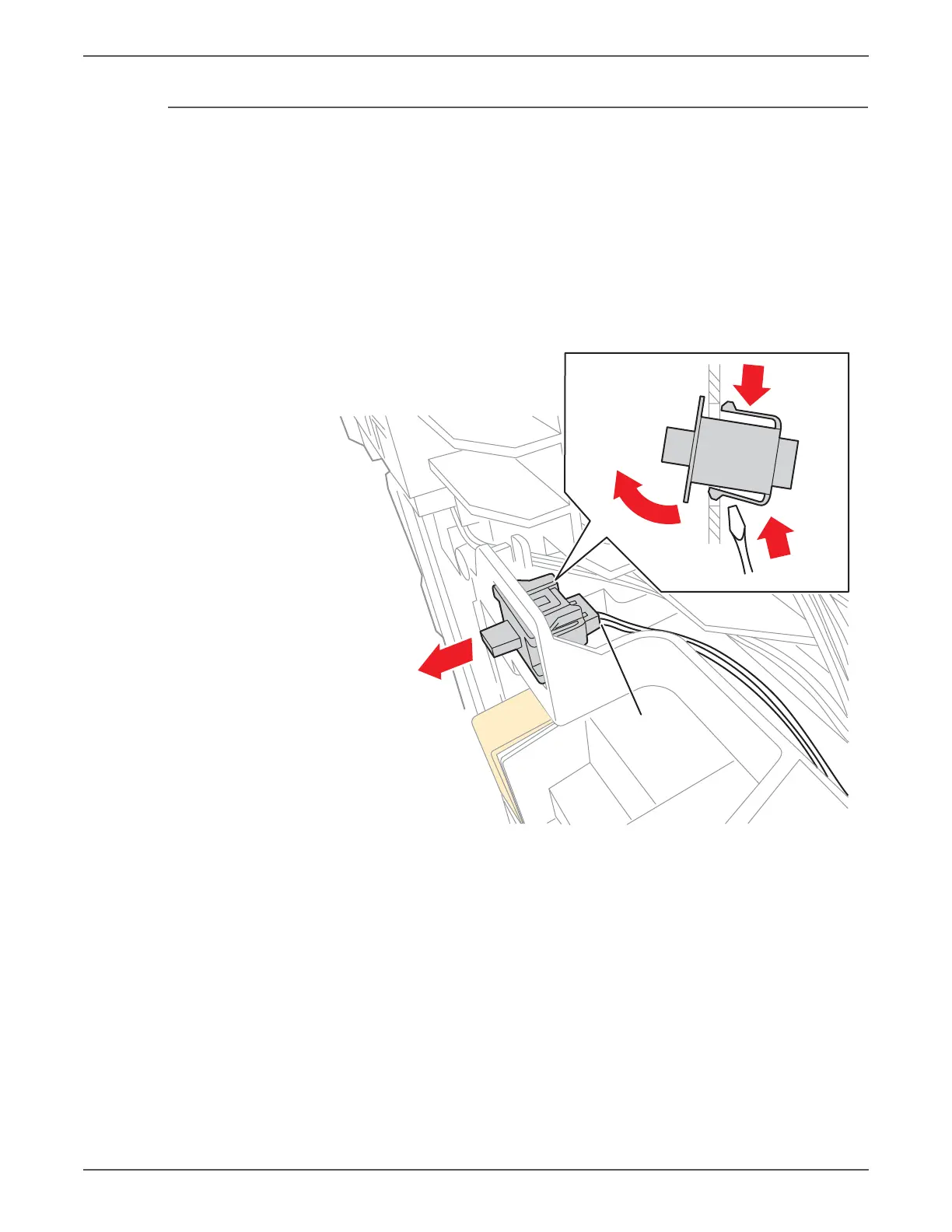

6. Using a miniature screwdriver, release the hooks that latch the switch in the
frame and remove the switch.
7. Unplug the switch from the harness connector (P/J291).
s6500-322
P/J291
1
2
3

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
