Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-9
Service Parts Disassembly
Feed Roller
PL3.2.4 (Roll Assy Feed)
1. Remove Tray 1.
2. Open the Front Cover.
3. Lower the Transfer Belt.
4. Remove the Imaging Unit (page 8-7)

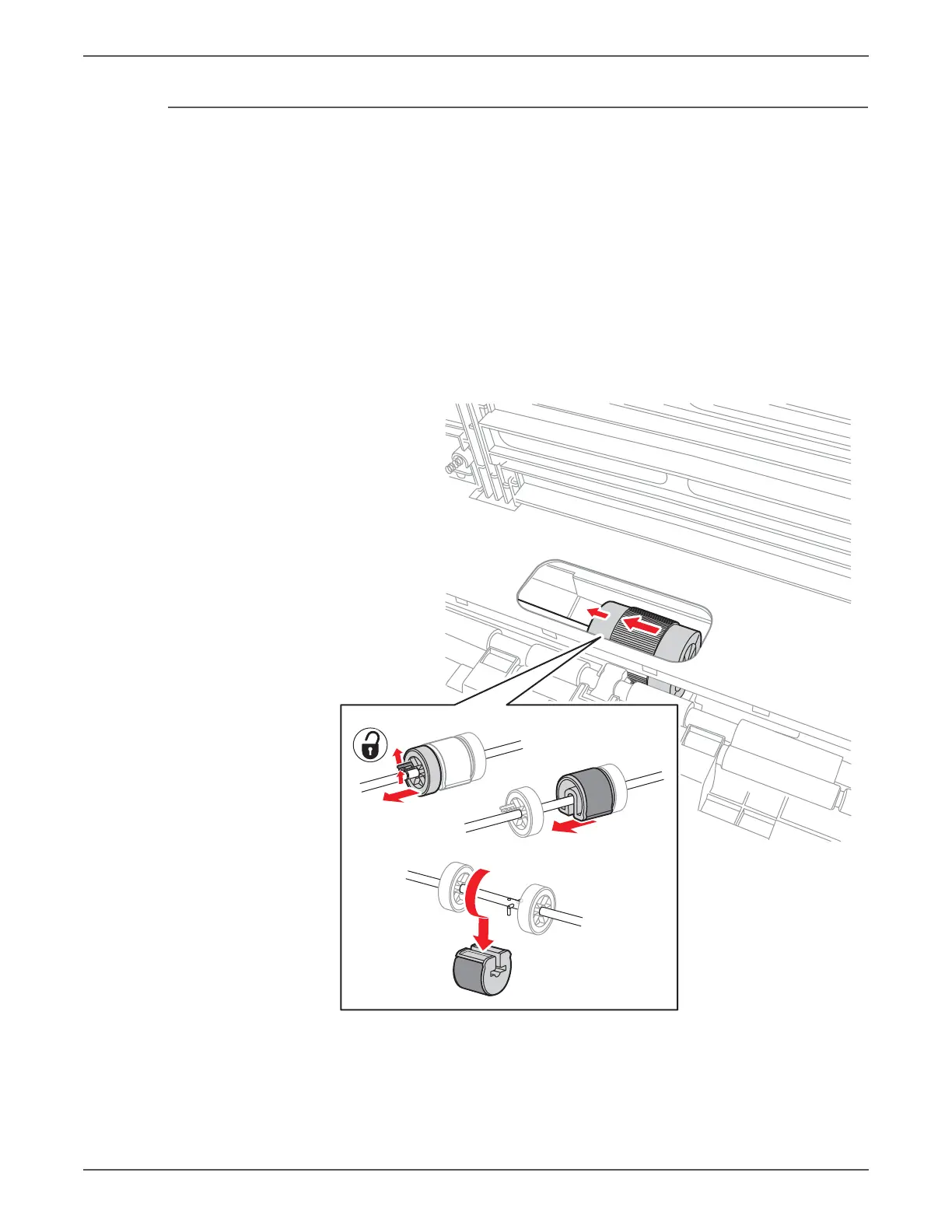

5. Reach in through the opening in the bottom of the Imaging Unit cavity and
release the hook on the left side of the roller. Move the roller core to the left
side.
6. Move the Feed Roller to the left, so that the grooves in the Feed Roller are clear
of the pins on the feed shaft.
7. Rotate the Feed Roller 180
o
on the feed shaft and allow the Feed Roller to
drop off the shaft.
Replacement Note
Because there are grooves in only one side of the Feed Roller, it fits over the
pins on the feed shaft in only one direction. Note the location of the grooves
when installing the Feed Roller on the shaft.
s6500-178

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
