Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-179
Service Parts Disassembly
Optional Feeder Harness
PL12.3.23 Harn Assy Tray (J273-J419)
1. Remove the Optional Feeder (page 8-167).
2. Remove the front cover (page 8-168).
3. Remove the left side cover (page 8-169).
4. Remove the Feed Motor (page 8-177).

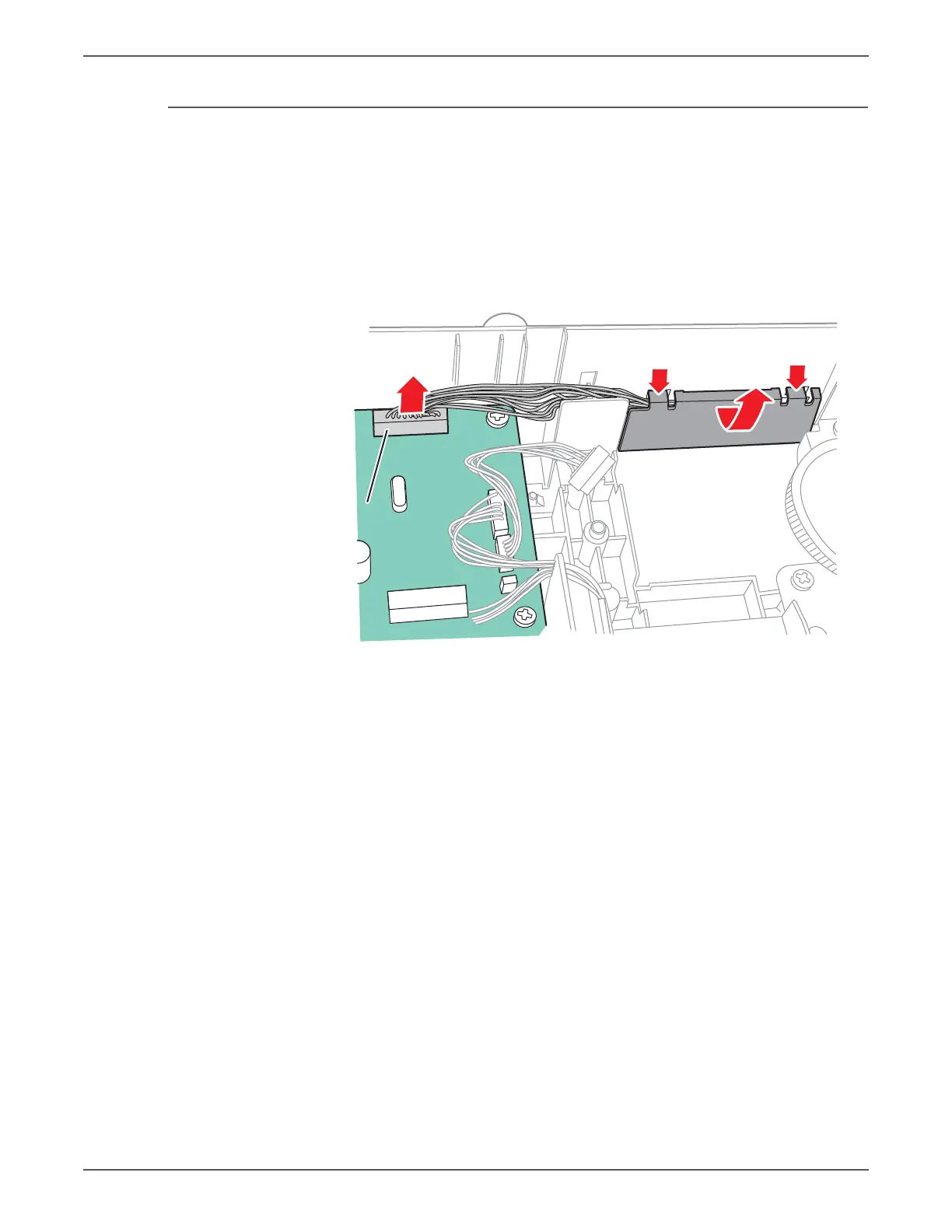

5. Disconnect P/J419 on the Feeder Board.
6. Release 4 hooks that secure the drawer harness cover and remove the cover.
s6500-362
P/J419

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
