Xerox WorkCentre 6505 Service Manual

8-146 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
MFP Interlock Harness
MFP PL8.1.1 (Harness Assy Interlock AIO [SW-J44])
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (page 8-37).
4. Remove the Outer Pole Cover (page 8-39).
5. Remove the Rear Cover (page 8-43).
6. Remove the Right Side Cover (page 8-40).
7. Remove the Top Cover (page 8-45).

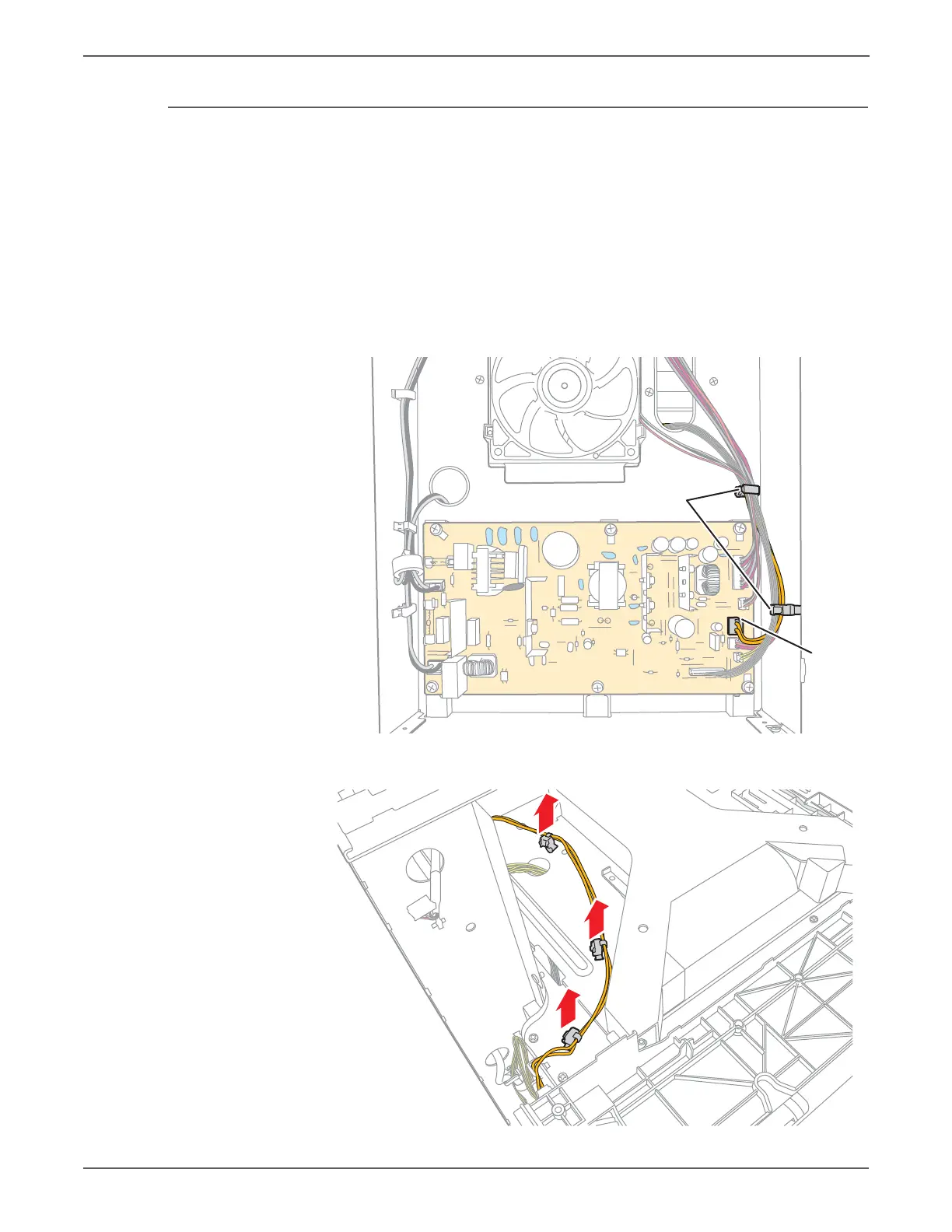

8. Disconnect P/J44 on the LVPS, and release the harness from the two clamps.
9. Remove the 3 clamps on the Top Plate Assembly that secure the harness, then
pull the harness through the hole.
Clamps
s6500-336
P/J44
s6500-337
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
