Xerox WorkCentre 6505 Service Manual

5-56 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Print-Quality Troubleshooting
Guaranteed Print Areas
• Maximum Print Area: 211.8 mm x 351.5 mm
Print the parameter list using the Print function of Parameter Menu in Service
Diagnostics before changing the registration values.
Printer Diag Parameter Settings
Item Range Description
Slow Scan K to P
(Shifts 0.17mm/1count)
-128 to 127 Sets the registration in the paper
feeding direction
Slow Scan 600 M,Y,C
(Shifts 0.042mm/1count)
Fast Scan K to M,Y or C
(Shifts 0.042mm/1count)
-128 to 127 Sets the registration in the scanning
direction. Color registration
adjustment Calculation of adjustment
is shown below. (example Yellow)
(Value of Fast Scan K to Y + Value of
Fast Scan 2 K to Y)/4
Fast Scan M-Feed, Tray
(Shifts 0.17mm/1count)
-30 to 30
Fast Scan 2 K to M,Y or C
(Shifts 0.01mm/1count)
-1 to 2
Life Counter - Reads the life and print counts.

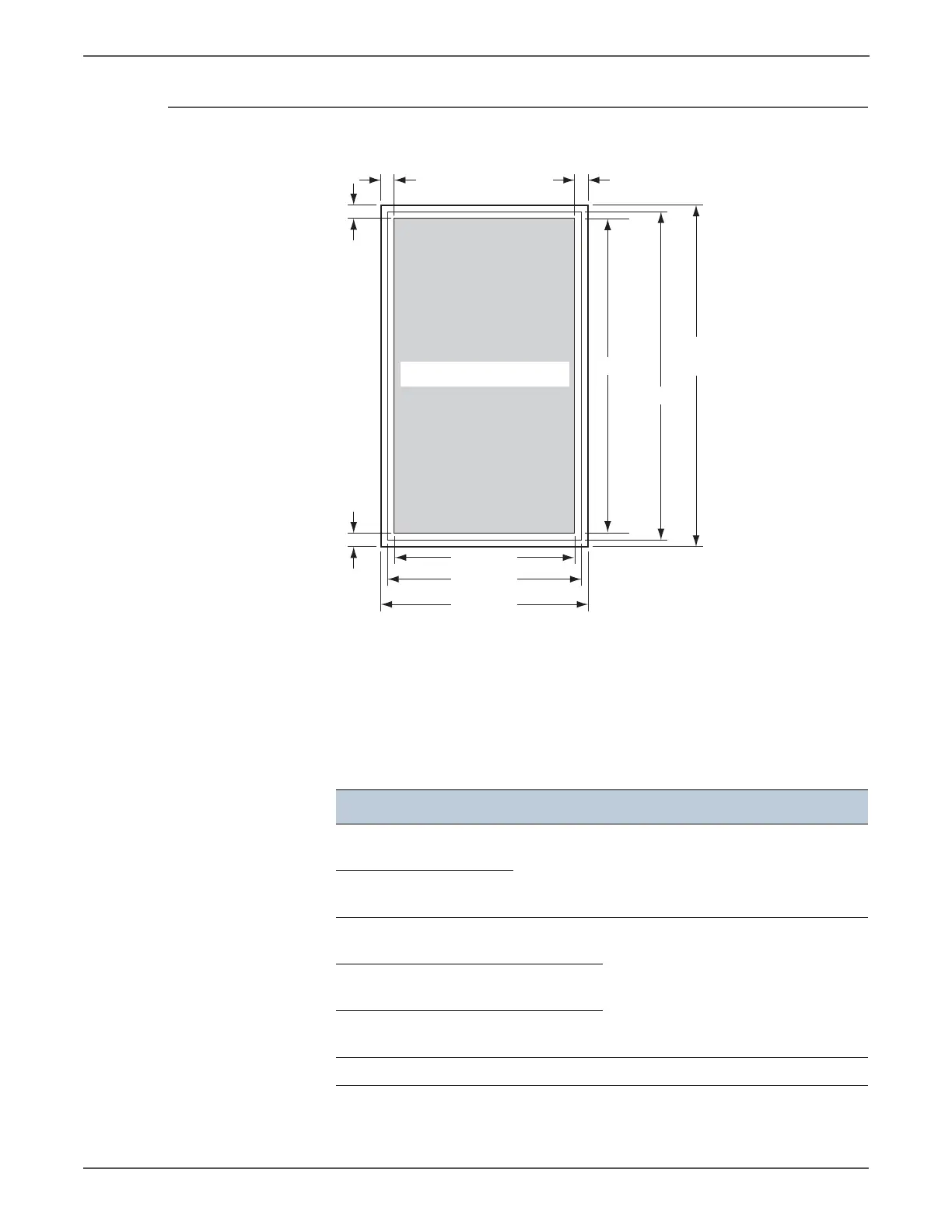

Guaranteed and Maximum Area
4 mm
4 mm
4 mm
4 mm
355.6 mm
(14 inch)
215.9 mm
(8.5 inch)
351.6 mm
347.6 mm
210.9 mm
Guaranteed printing area
207.9 mm
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
