Xerox WorkCentre 6505 Service Manual

2-16 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Theory of Operation

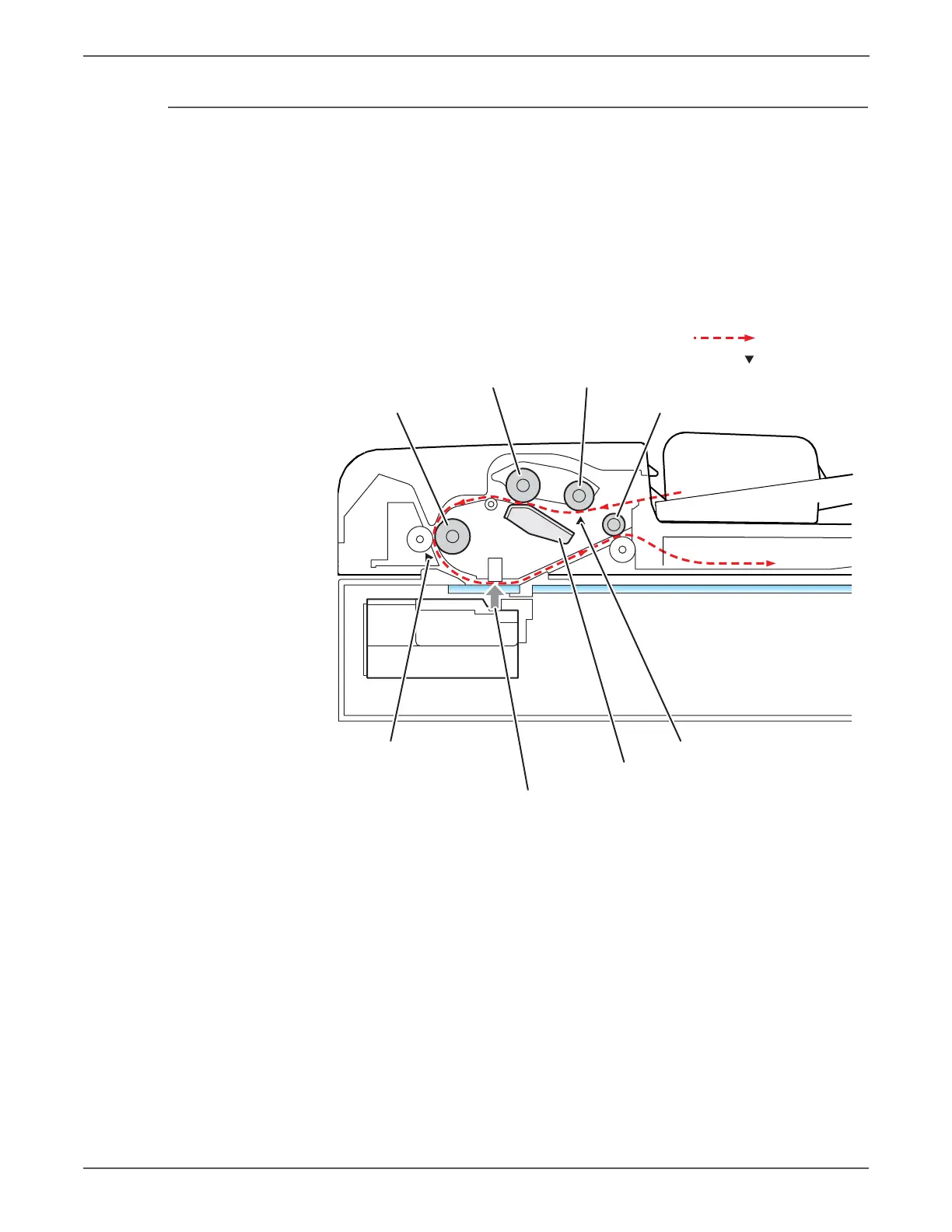

ADF Media Path
When the sheet feeding from the Document Feeder Tray of the ADF starts, the
Nudger Roll and the Feed Roll that rotate driven by the torque from the ADF
Motor. The sheet is nipped between the Feed Roll and the ADF Separator Pad while
being fed into the ADF.
Inside the ADF, the sheet is fed by the Takeaway Roll that rotates by the torque
from the ADF Motor to the Scanner Home (CVT: Constant Velocity Transport)
Position in the Carriage Assy, and is scanned.
After being scanned, the sheet is ejected to the Document Output Tray of the ADF
by the Exit Roll that rotates by the torque from the ADF Motor.
s6500-471
Exit RollerTakeaway Roller
Nudger RollerFeed Roller
Home Position (CVT Position)
Feed Sensor Document Sensor
ADF Separator Pad
: Paper Transfer
: Paper Sensors
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
