Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 2-19
Theory of Operation
Sensors in the Media Path

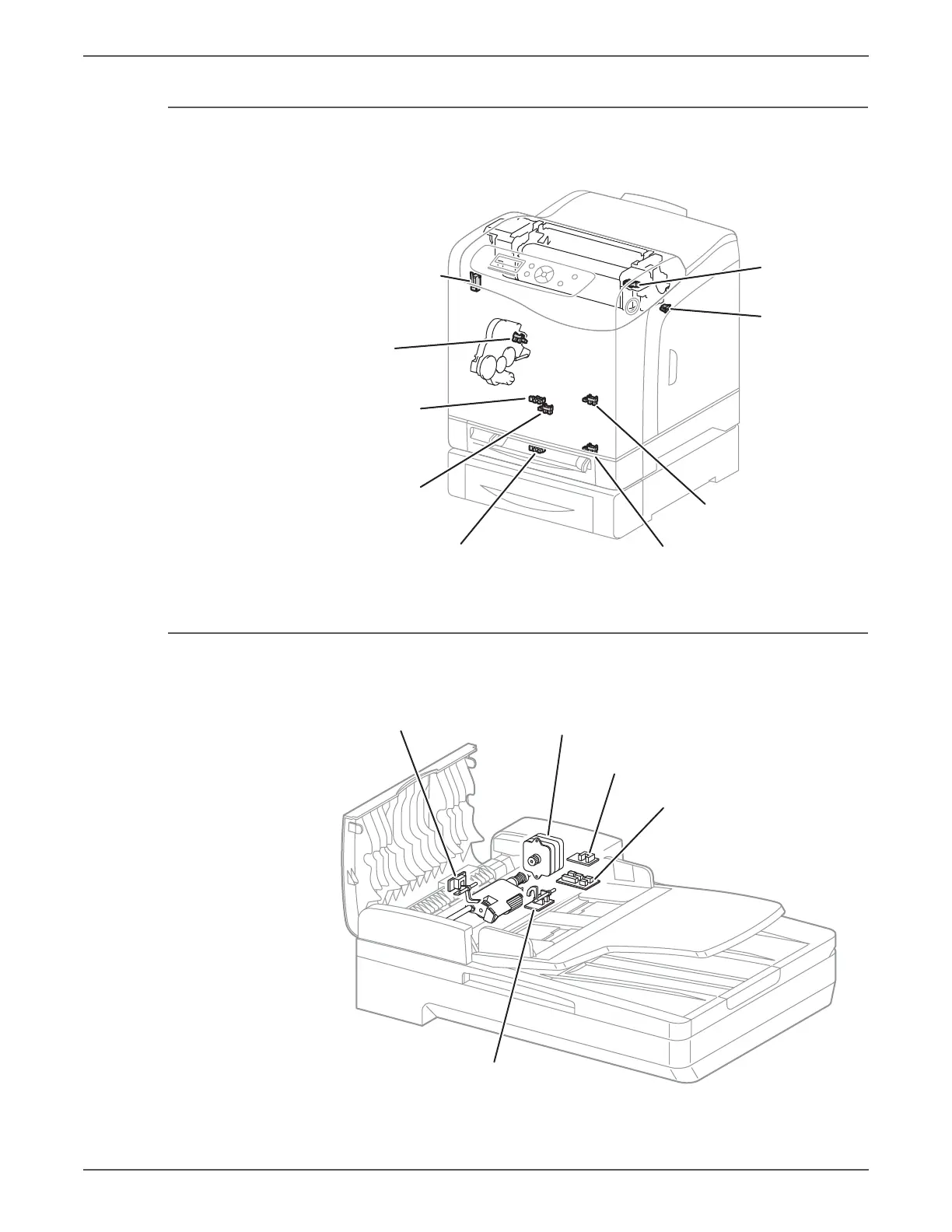

The following illustration identifies the sensors located along the paper path. Error
detection is based on media transport timing through the sensing area.
Sensors in the Automatic Document Feeder
This drawing shows the location of sensors in the Automatic Document Feeder on
the WorkCentre 6505.
s6500-034
Exit Sensor
Right Side
Door Switch
Manual Feed
No Paper Sensor
Registration
Sensor
K Mode
Sensor
Interlock Switch
Tray No Paper Sensor
Tray 2 Paper Path Sensor
Tray 2 No Paper Sensor
s6500-081
ADF Motor
ADF Board
Cover Open Sensor
Feed Sensor
Document Sensor
