Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 6-3
Adjustments and Calibrations

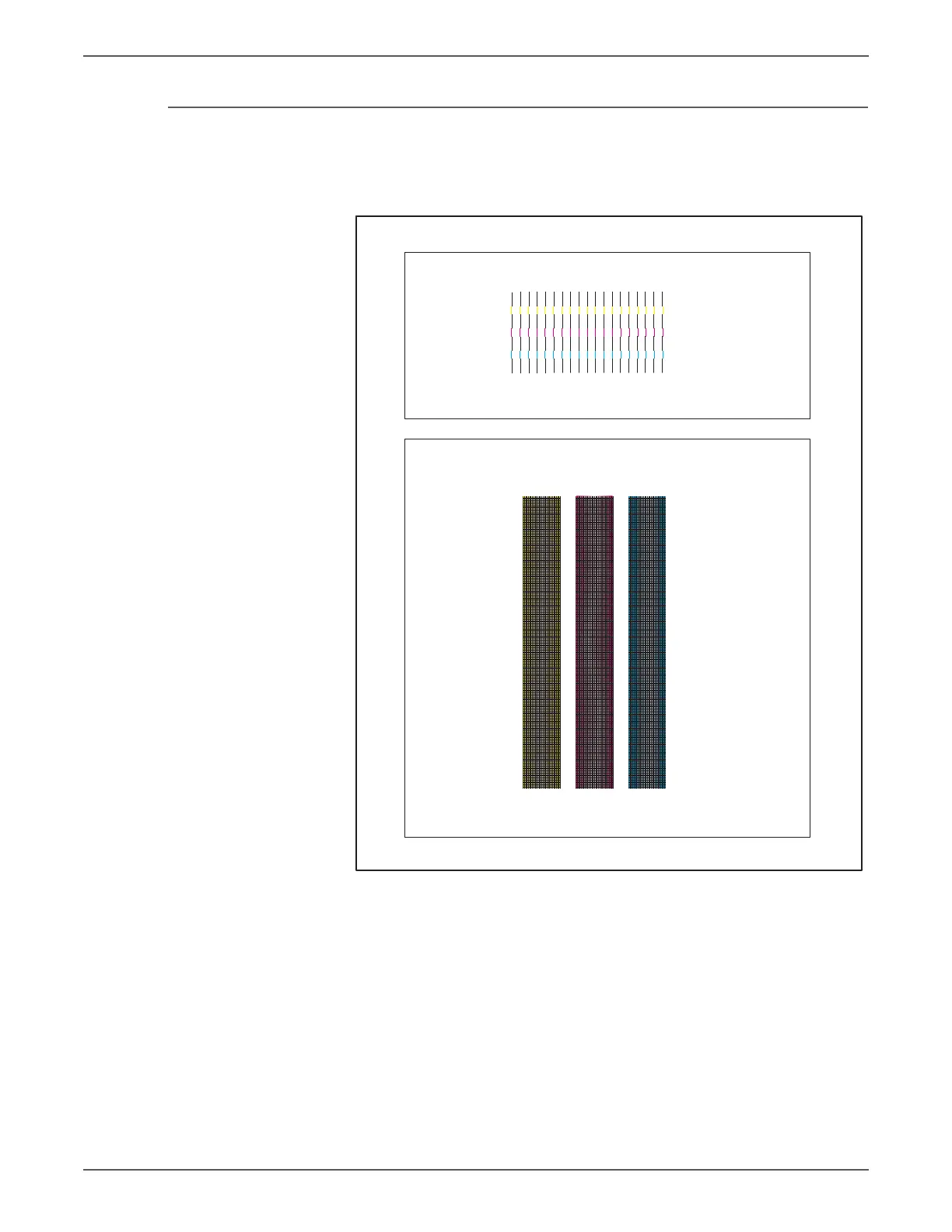

Printing the Color Registration Correction Chart
Before performing the Color Registration adjustment procedure, print the Color
Registration Correction Chart for reference.
1. From the Control Panel, press the Menu button.
1. Press the Up or Down Arrow to find Admin Menu. Press OK.
2. Press the Up or Down Arrow to find Maintenance Mode. Press OK.
3. Press the Up or Down Arrow find Adjust Color Regi. Press OK.
4. Press the Up or Down Arrow to find Color Regi Chart. Press OK. The Color
Registration Chart prints. When finished, Ready appears.
After printing the Color Registration Correction Chart, do not power Off the
printer until the Main Drive motor has stopped running.
s6500-165
1
2
YMC
Y
M
C
+9
+8
+7
+6
+5
+4
+3
+2
+1
0
-1
-2
-3
-4
-5
-6
-7
-8
-9
+9
+8
+7
+6
+5
+4
+3
+2
+1
0
-1
-2
-3
-4
-5
-6
-7
-8
-9
+9
+6
+3
0
-3
-6
-9
+9
+6
+3
0
-3
-6
-9
+9
+6
+3
0
-3
-6
-9
+9
+6
+3
0
-3
-6
-9
+9
+6
+3
0
-3
-6
-9
+9
+6
+3
0
-3
-6
-9
