Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 2-13
Theory of Operation

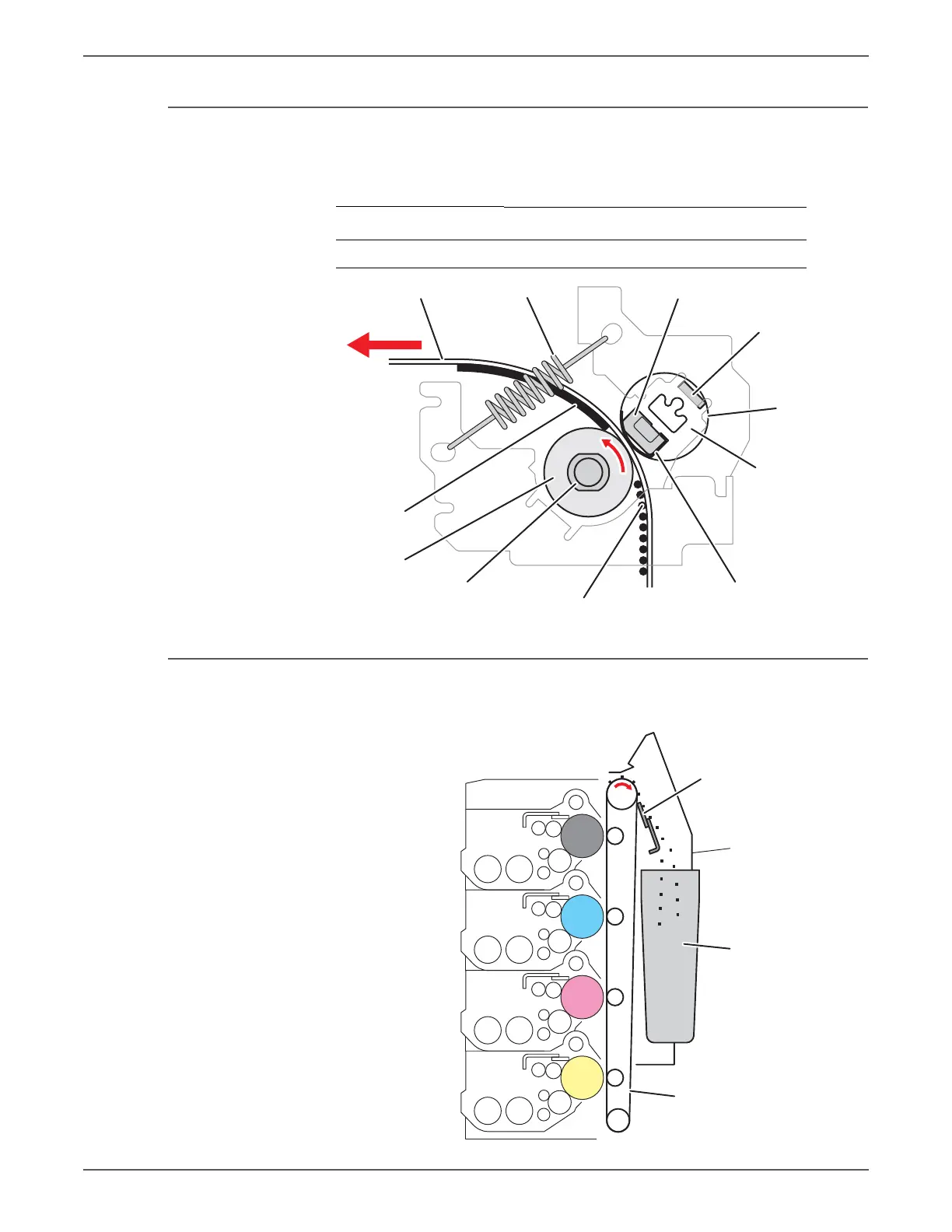

Fusing
The image is bonded to the media by the Fuser. The heat roller with the heat lamp
melts the toner particles. Toner is fused onto the media by the combination of
heat and pressure.
Transfer Belt Cleaning
The Transfer Belt is cleaned by a cleaning blade that removes excess toner from
the Transfer Belt surface and directs waste toner to a reservoir.
Warm-Up Stand By Printing
Main Heater Lamp On On/Off On
s6500-030
Paper
Nip Spring
Felt
Belt
Nip Head
Belt Frame
Sheet
Unfixed Toner
Heater Lamp
Heat Roller
Fixed Toner
s6500-031
Belt
Cleaner Box
Blade Assy

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
