Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-109
Service Parts Disassembly
Transfer Belt Pivot Kit
PL 6.1.99 (Kit Pivot)
This procedure removes the left and right Transfer Belt pivot shafts.
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Right Side Cover (SFP, page 8-17; MFP, page 8-40).
4. Remove the Left Side Cover (SFP, page 8-18; MFP, page 8-37).

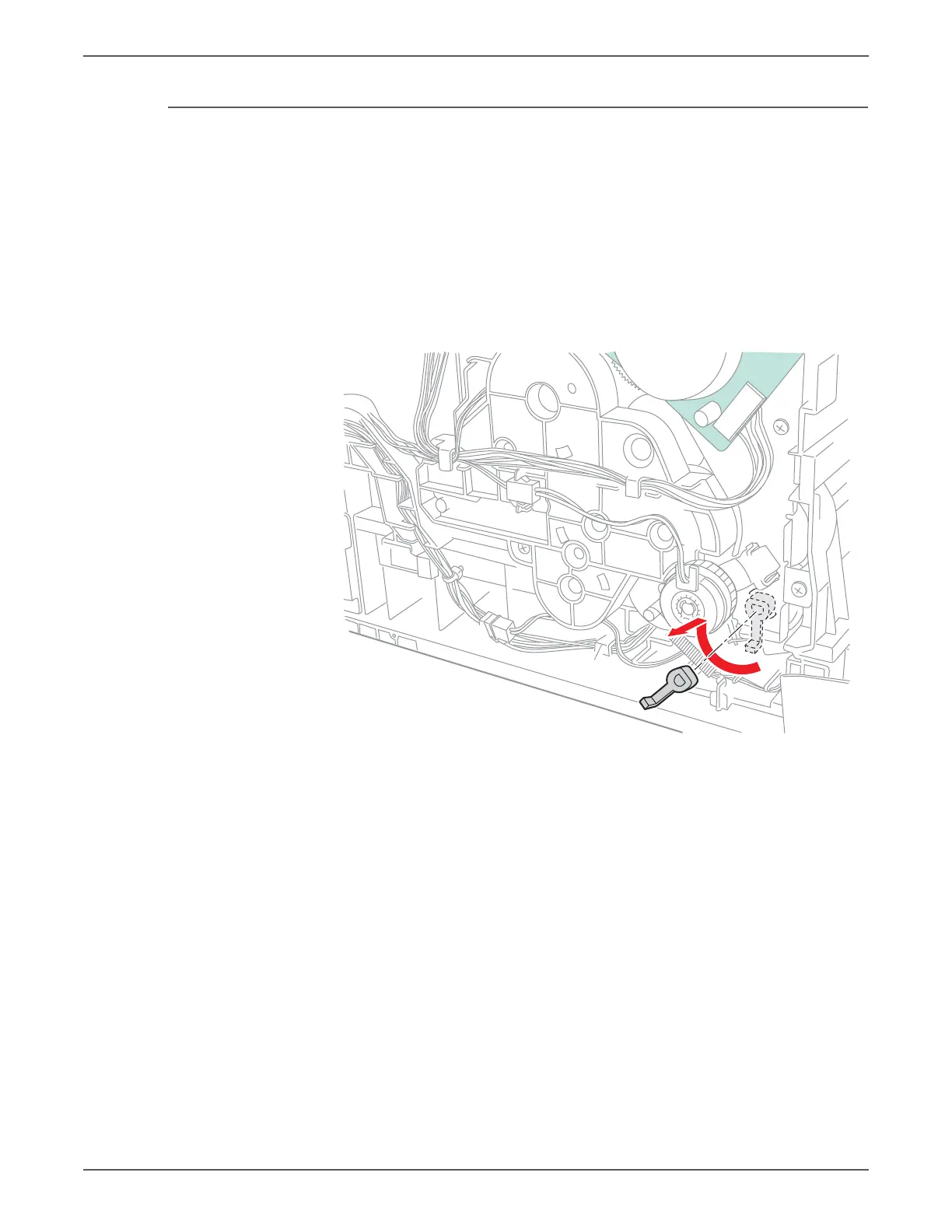

5. Rotate the Pivot Stopper so that its tabs align with the notches of the Main
Drive Assembly.
6. Remove the Pivot Stopper.
Note
When performing the next step, be ready to catch Gear T4 when you
remove the pivot shaft.
7. Pull out the Left Transfer Pivot shaft, and remove the Gear T4.
s6500-291

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
