Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 5-19
Print-Quality Troubleshooting
Vertical Stripes
There are Black lines along the page in the direction of the paper travel from the
leading edge to the trailing edge.
Initial Actions
• Check the media path.
• Ensure there are no debris on the transfer path.
Allow the Fuser to cool before starting the procedure.
Troubleshooting Reference Table

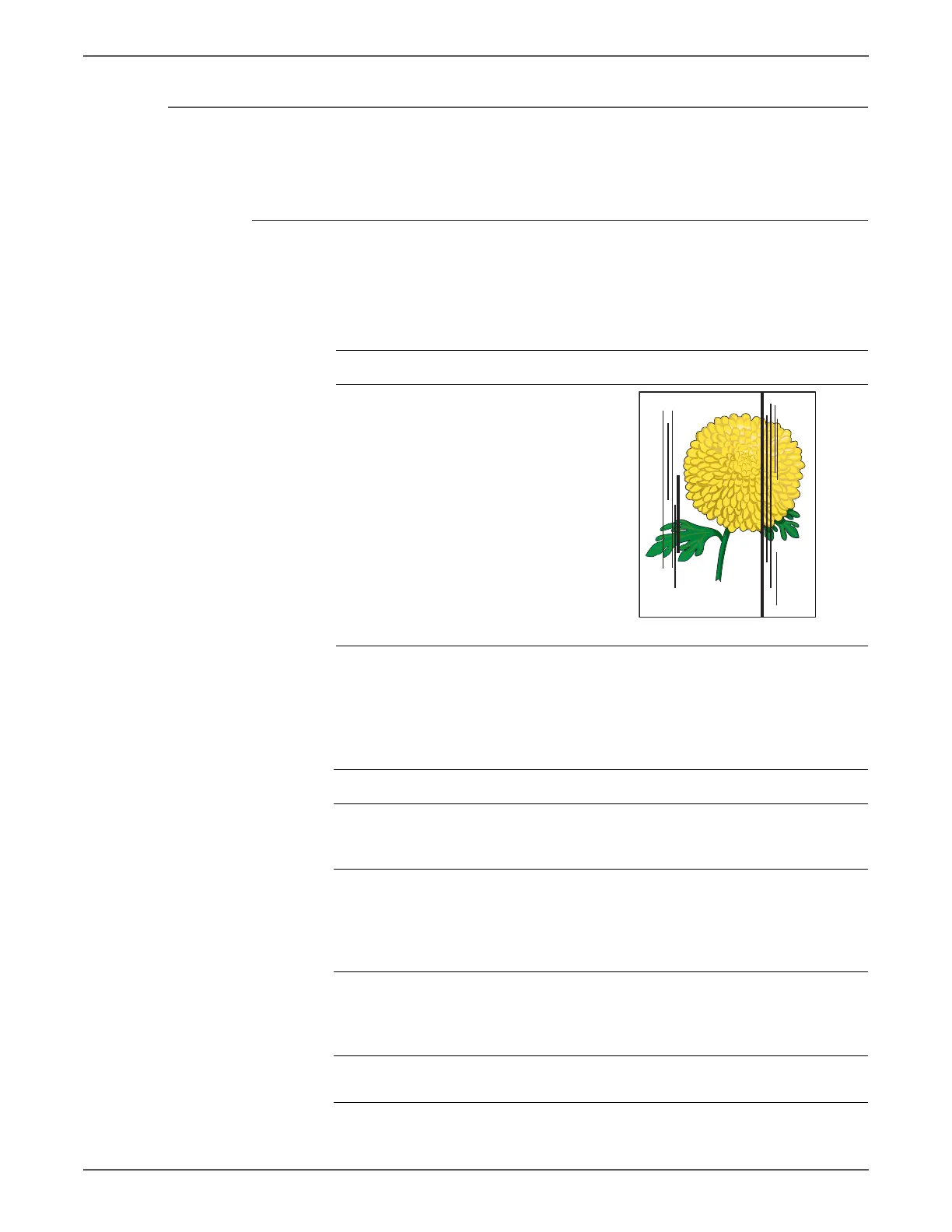

Applicable Parts Example Print
Imaging Unit, PL4.1.21
Laser Unit, PL4.1.99
Fuser, PL6.1.1
Transfer Belt, PL6.1.7
IP Board, PL8.1.7
MCU Board, PL8.2.13
Troubleshooting Procedure
Step Actions and Questions Yes No
1 Print an Engine Test print
(page 4-47).
Is the test print printed correctly?
Replace the IP
Board
(page 8-120).
Go to step 2.
2 Check the Transfer Belt high-voltage
connections.
Are the contacts on the Transfer Belt
and springs damaged or dirty?
Clean or
replace the
Transfer Belt
contacts or
spring(s).
Go to step 3.
3 Check the Imaging Unit high-
voltage connections.
Are the contacts on the Imaging
Unit, and springs damaged or dirty?
Clean and/or
replace the
Imaging Unit
or spring(s).
Go to step 4.
4 Reseat the Imaging Unit.
Does the error persist?
Complete Go to step 5.
Vertical Stripes

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
