8-140 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
SFP IP Board Cage
This procedure removes the entire IP Board cage including the fan duct. Although
it is not associated with any one part, it simplifies other procedures.
Note
The “circled” screws in this procedure have a circle scribed in the chassis
around their locations.
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Top Cover (page 8-15).
4. Remove the Right Side Cover (page 8-17).
5. Remove the Left Side Cover (page 8-18).
6. Remove the Rear Cover (page 8-20).
7. Remove the Fan (page 8-119).
8. Remove two circled screws at the bottom of the IP Board Cage.
9. Unplug the cables at P10 and P11 on the MCU Board.
10. Open the cage cover and disconnect P401 and P29 from the IP Board. Pull the
harnesses through the hole in the side of the cage.
11. Remove three circled screws at the top of the IP Board Cage (one screw is
behind the Fan).
Note
Loosening or removing the screw that holds the Fan Duct to the IP Board
cage can ease removal. Complete removal of the Fan Duct is unnecessary.

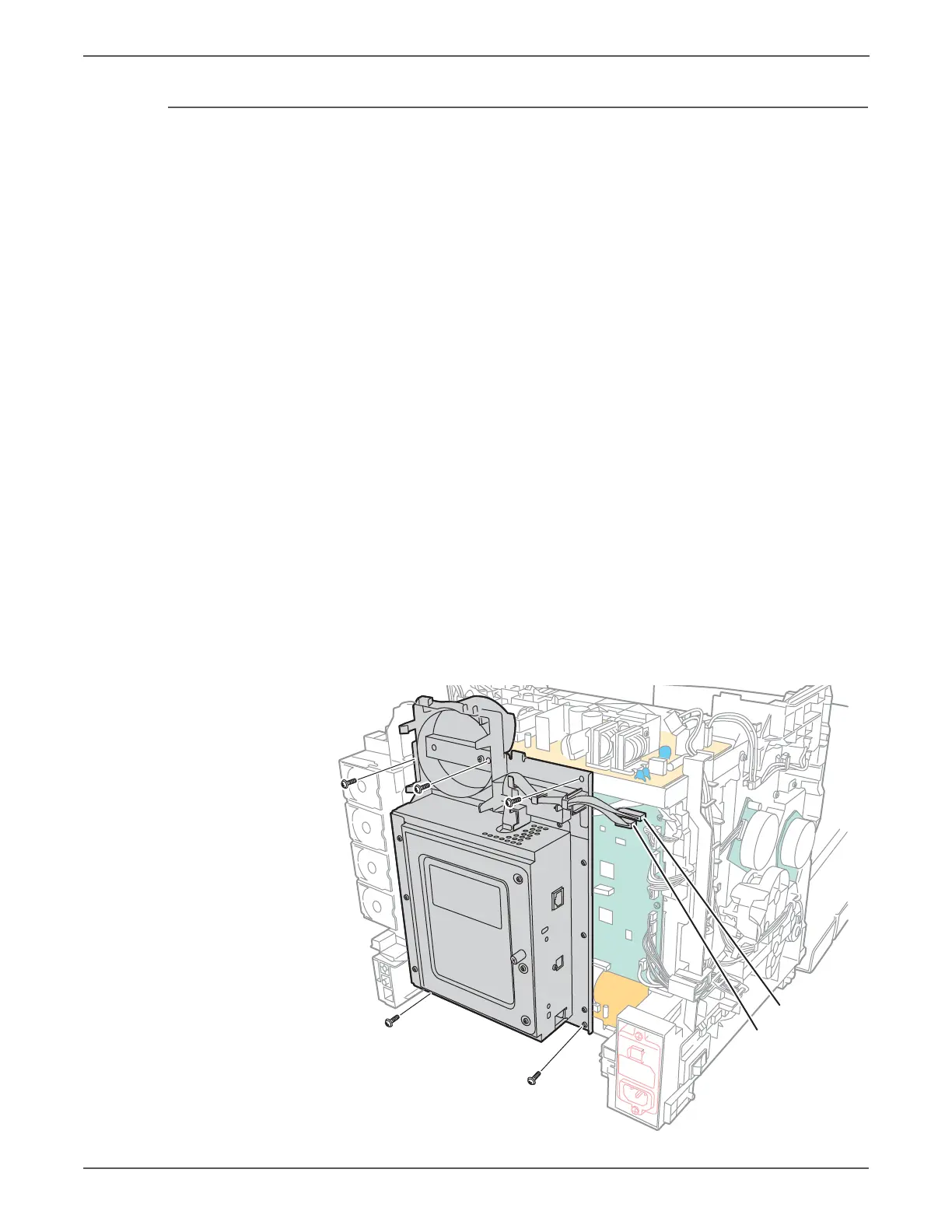

12. Swing the cage out from the bottom and lift up enough to free the hook at the
top.
s6500-328
P/J10
P/J11
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
