Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-59
Service Parts Disassembly
MFP Chassis
MFP Top Plate Assembly
MFP PL 8.2.2 (Plate Assy Top)
1. Perform the service preparation steps on page 8-3.
Note
Removal of the IIT Sub-assembly is not necessary if you have a “stubby”
screwdriver for removing the screws from the Top Plate in step 10.
2. Remove the IIT Sub-assembly. (page 8-195)
3. Remove the MFP Rear Cover (page 8-43).
4. Remove the MFP Top Cover (page 8-45).
5. Remove the MFP LVPS Card Cage (page 8-64).

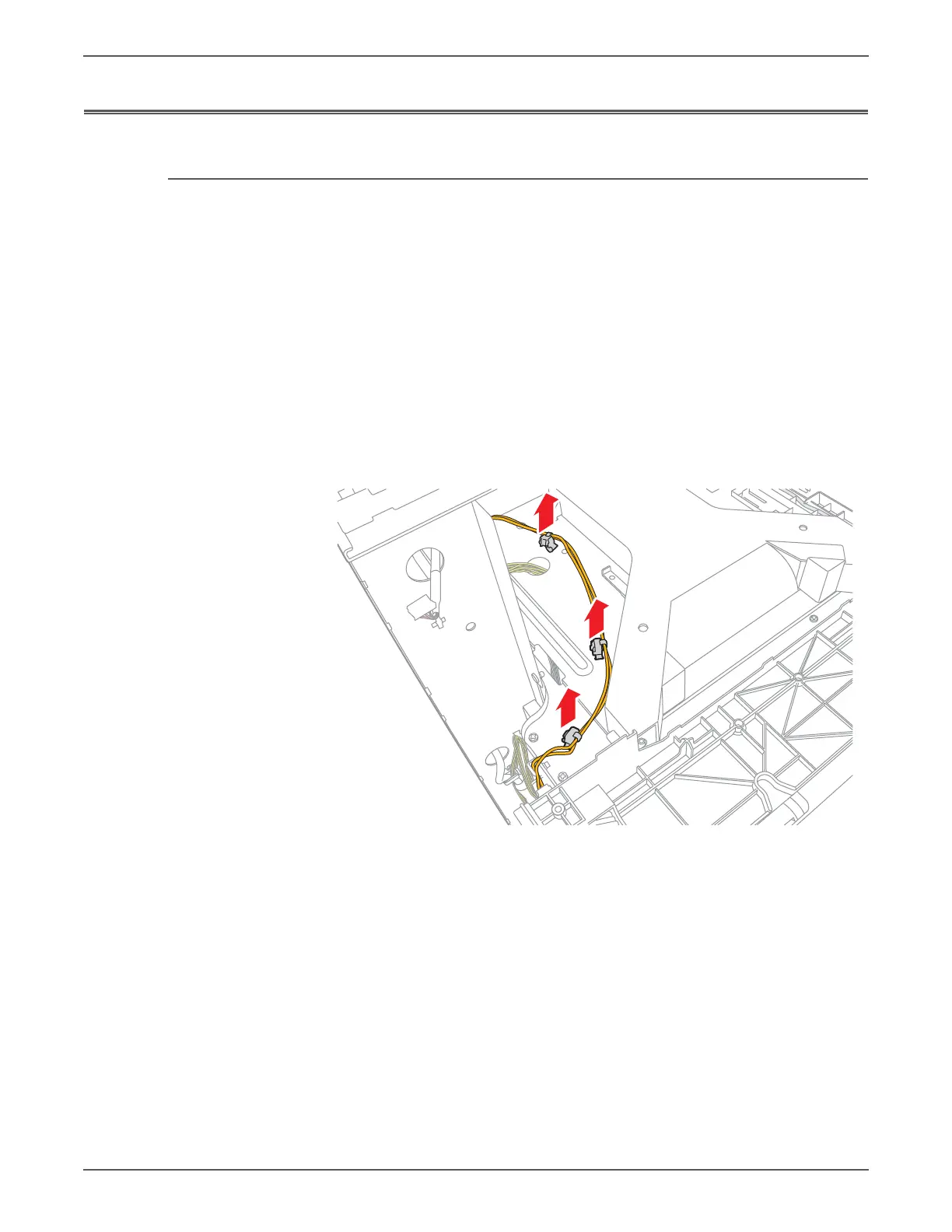

6. Release 3 harness clamps that secure the Interlock harness to the Top Plate
Assembly.
s6500-337

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
