Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 2-15
Theory of Operation
Media Path Components

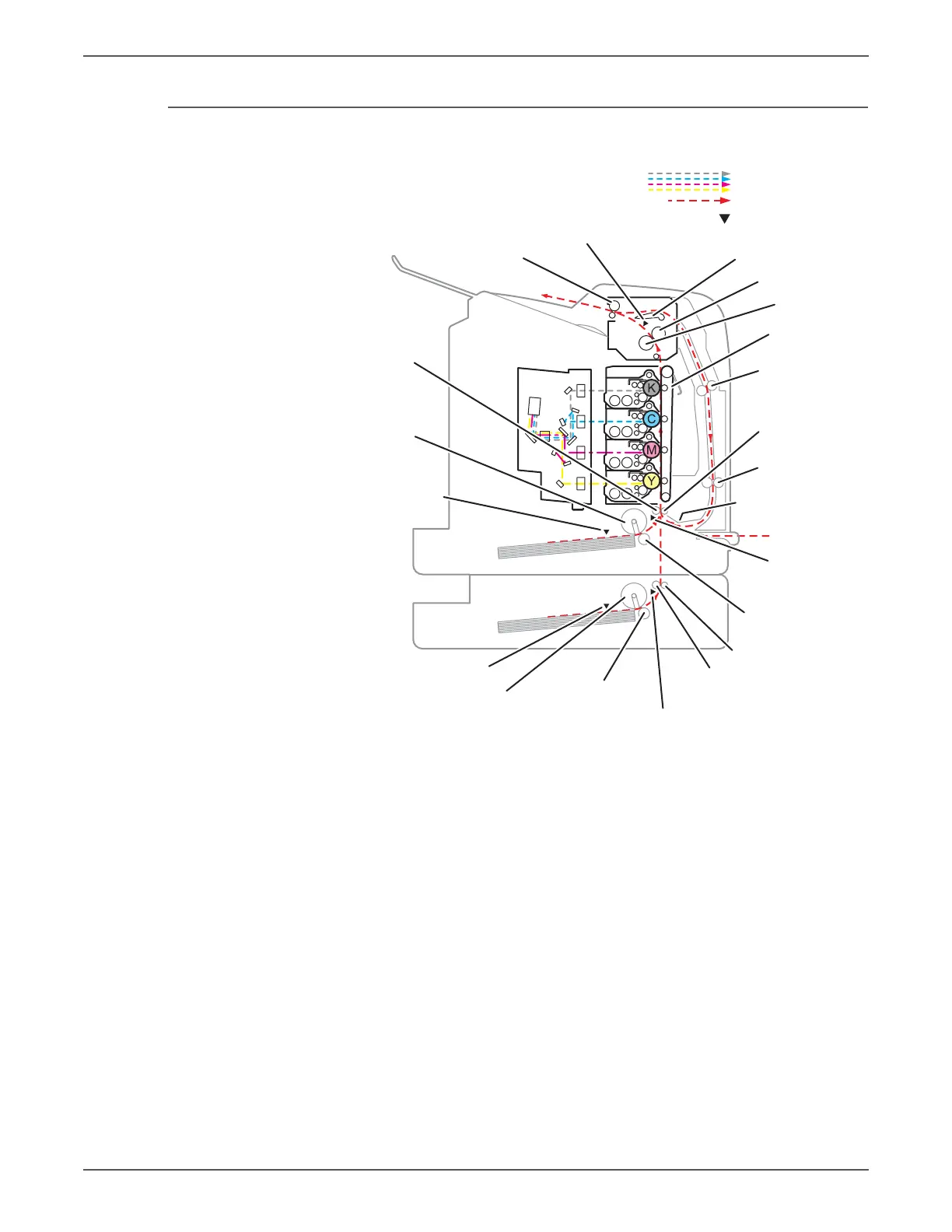

Media path components are shown in the following figure.
s6500-033
: Laser Beams
: Media Path
: Paper Sensors
Exit Roller
Duplex Gate
Heat Roller
Transfer Belt
Pressure Belt
Registration
Roller
(Rubber)
Duplex Roller
Exit Sensor
Registration
Roller (Metal)
Turn Roller(Metal)
Turn Roller (Rubber)
Manual Feed
No Paper Sensor
Registration
Sensor
Paper Path Sensor
Separator Roller
Separator Roller
Tray 2 No Paper Sensor
Tray 1
No Paper Sensor
Feed Roller
Feed Roller
Duplex Roller

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
