Theory of Operation
CCD Image Sensor
The CCD Image Sensor is a four-color image sensor with three lines for the
respective colors R (red), G (green), B (blue) and one line for B/W (black and white).
MFP System Configuration
The MFP Image Processor Board controls the FAX, Scanner, and ADF. FAX and copy
operations are performed according to data entered at the Control Panel.

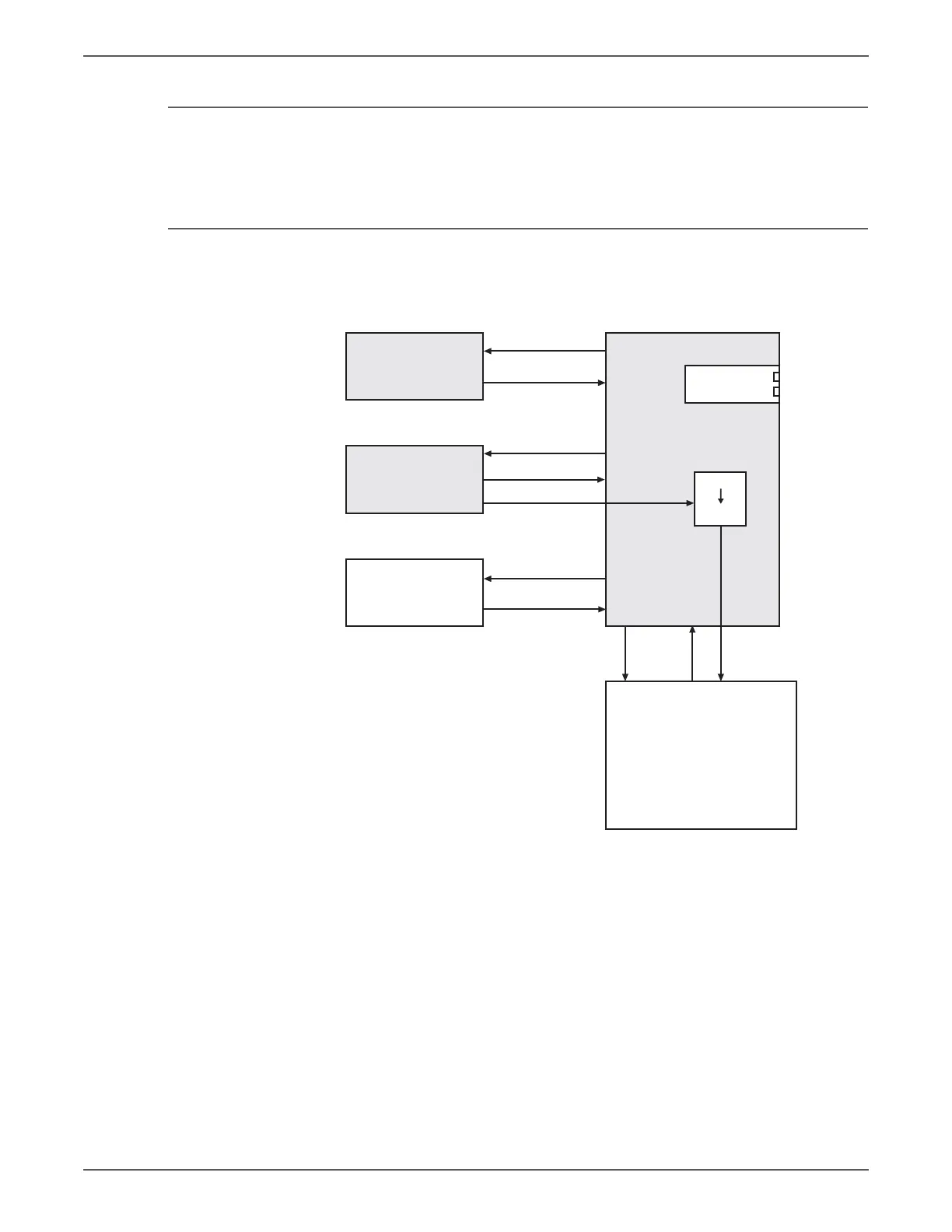

The following figure shows the system configuration.
s6500-079
StatusCommand
Fax Board
Image Processor Board
Drive Signal
Image Signal
Message Signal/
Drive Signal
Drive Signal/
CCD Clock
Sensor Signal
Image Signal
Sensor Signal
Switch Signal
Telephone
Line
ADF
Sensor Board/Motor
Control Panel
Switch/Display/LED
Scanner
CCD Board/Motor/
Sensor/Lamp
R G B
Y M C K
MCU Board

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
