Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 2-11
Theory of Operation
Imaging Unit
Excess toner is removed from the drum and the BCR surfaces, while excess charge
is also eliminated from the drum surface.
• Drum Cleaning – The cleaning blade contacts the surface of the drum
collecting the excess toner by scraping off toner.
• Cleaning Roller – The cleaning roller contacts the surface of the BCR collecting
the excess toner by scraping off toner.
• Charge Cleaning – When the drum is charged by the BCR, any excess charge
hinders the drum surface from being uniformly charged, which may lead to
print quality problems. The the latent charge pattern remaining on the
photoconductive drum is neutralized by the Erase Lamp to prepare the drum
for the next exposure cycle.

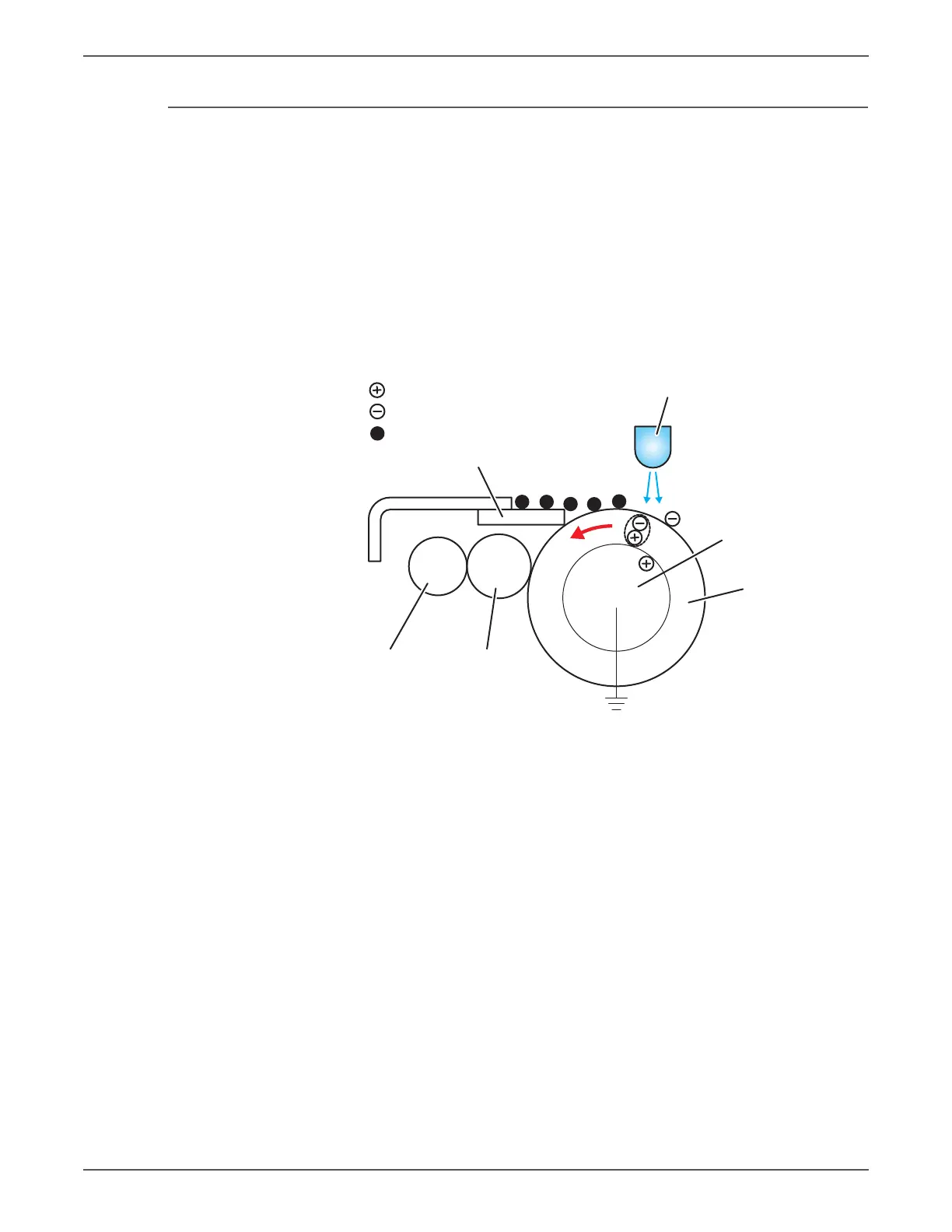

s6500-028
: Positive Electric Charge
: Negative Electric Charge
: Toner
Erase Lamp
Blade
Cleaning Roll
BCR
Drum
Conductor
Photoreceptor

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
