Xerox WorkCentre 6505 Service Manual

4-20 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
General Troubleshooting
Print Engine Test Procedures
The print engine diagnostic test procedures are divided into three major groups:
Sensor Tests, Motor Tests, ana NVM Settings.
Sensor Tests

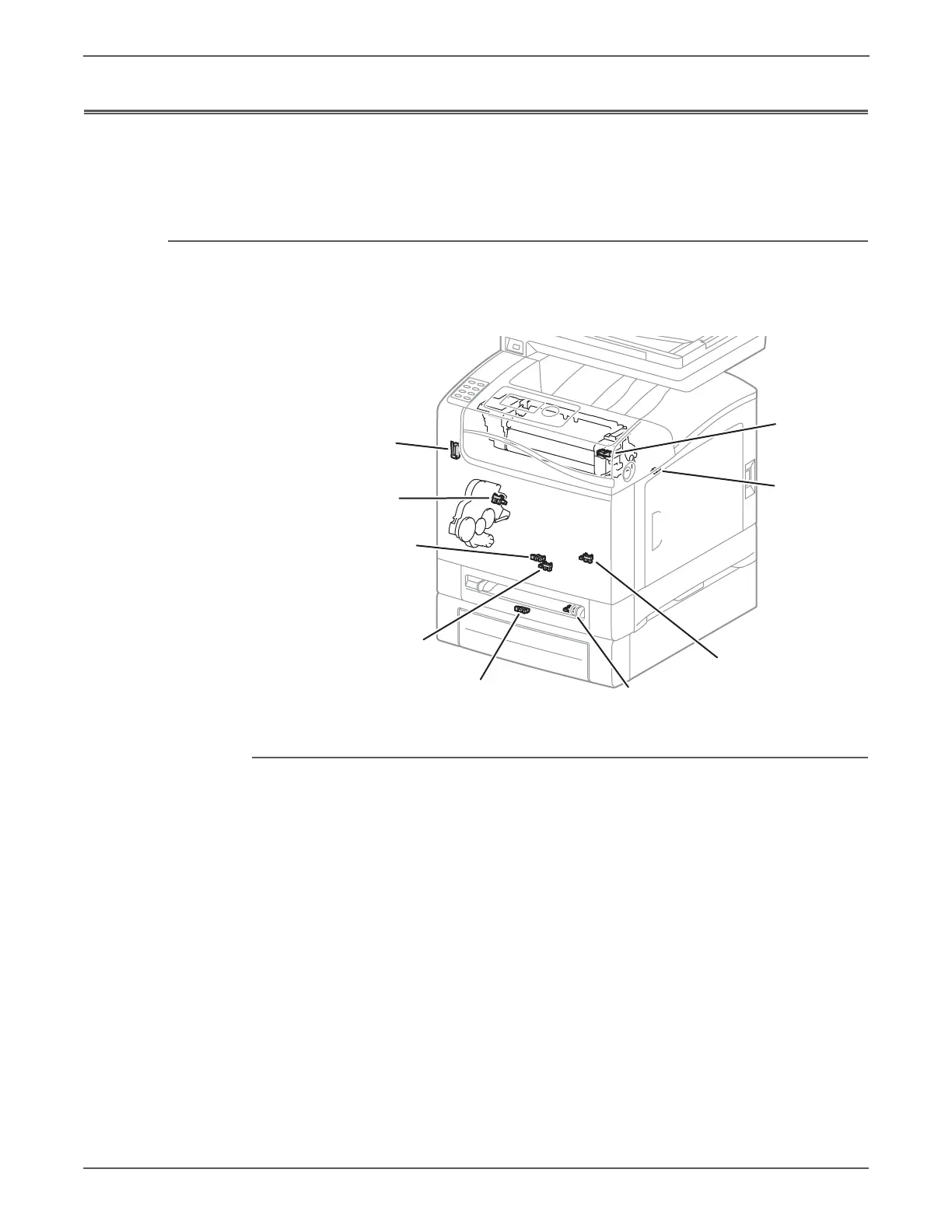

The following procedures test each print engine sensor using Service Diagnostics.
This illustration depicts the MFP; the sensors in the SFP are the same and in the
same locations.
Manual Feed Sensor
1. Enter Service Diagnostics (page 4-8).
2. Run the Manual Feed Sensor test: Engine Diag > Sensor Test > Manual Feed
Sensor.
3. Slide a sheet of paper in and out of the Manual Feed slot.
s6500-105
Tray No Paper Sensor
Registration
Sensor
Interlock
Switch
Right Side
Door Switch
Exit Sensor
Paper Path Sensor
Manual Feed
No Paper Sensor
K Mode
Sensor
Tray 2 No Paper Sensor
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
