Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 4-21
General Troubleshooting
Note
Press Cancel to stop the test.

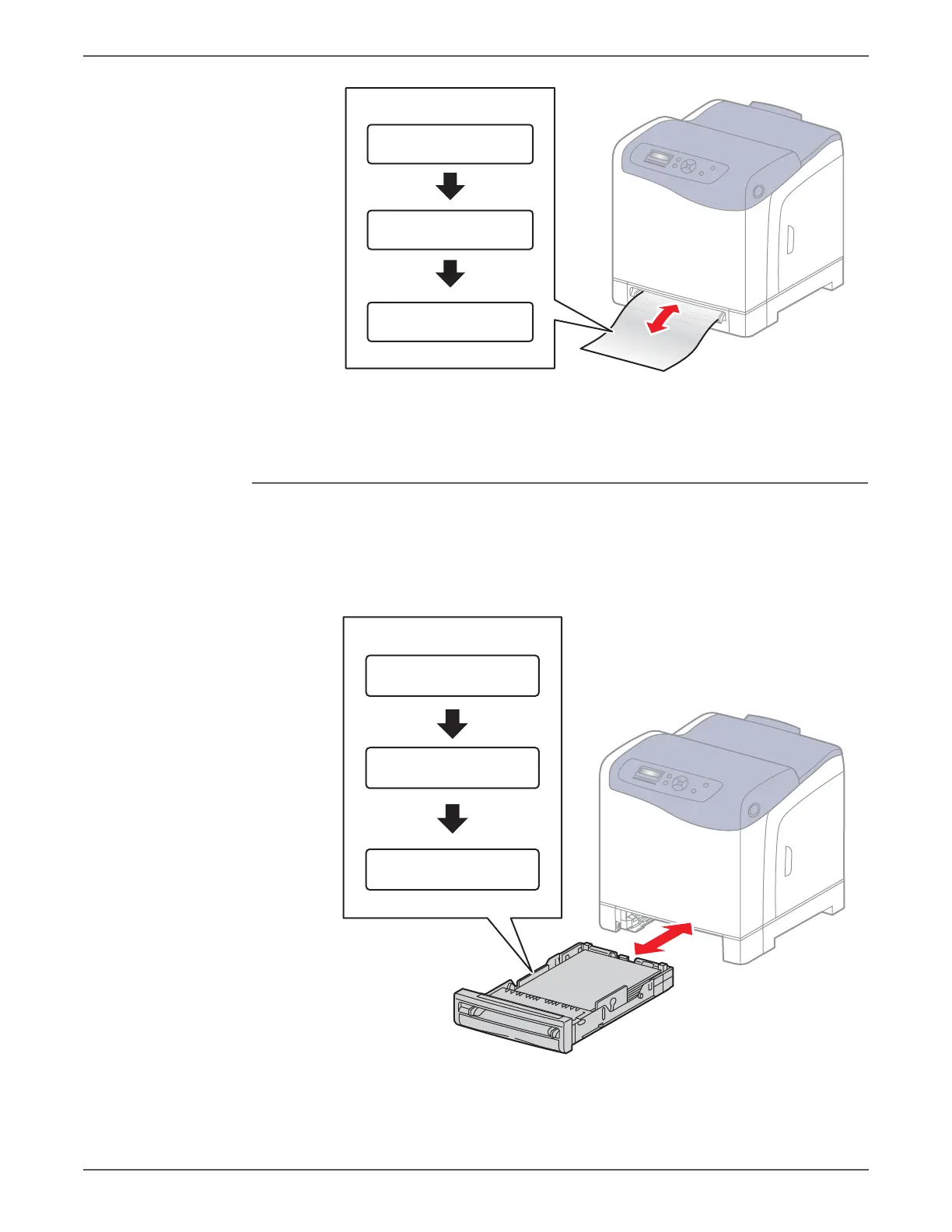

Tray 1 No Paper Sensor
1. Enter Service Diagnostics (page 4-8).
2. Run the Tray No Paper test: Engine Diag > Sensor Test > Tray No Paper.
3. Remove Tray.
4. Move the Actuator up and down while checking the Control Panel display.
Note
Press Cancel to stop the test.
s6500-106
Control Panel
Normal
Manual Feed Sensor
L - 00
Manual Feed Sensor
H - 00
Manual Feed Sensor
L - 01
s6500-107
Control Panel
Normal
Tray No Paper
L - 00
Tray No Paper
H - 00
Tray No Paper
L - 01
