4-22 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
General Troubleshooting
Registration Sensor
Caution
Cover the Imaging Unit to prevent light exposure.
1. Enter Service Diagnostics (page 4-8).
2. Remove Tray 1.
3. Open the Front Cover.
4. Lower the Transfer Belt.
5. Remove the Imaging Unit (page 8-7)

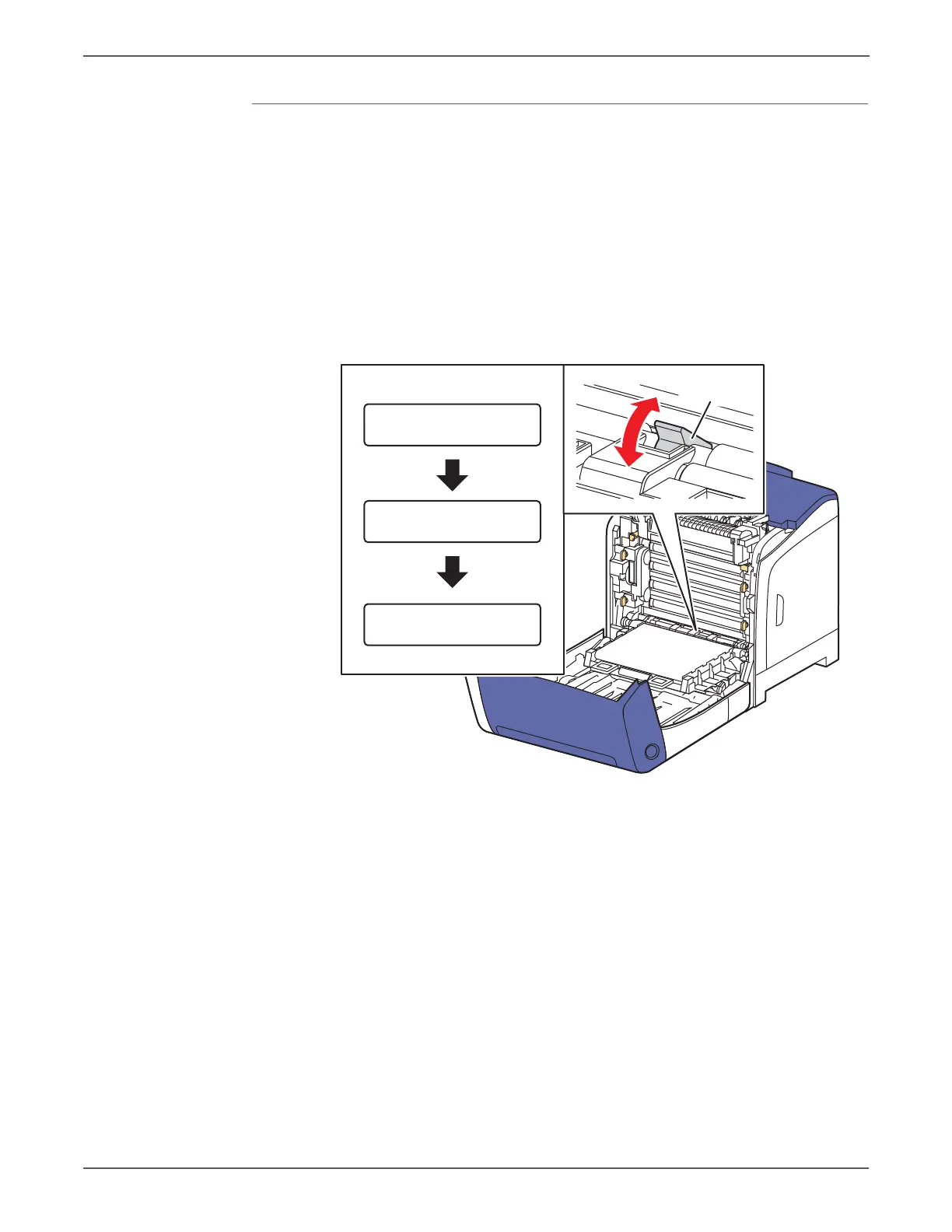

6. Run the Registration Sensor test: Engine Diag > Sensor Test > Regi Sensor.
7. Operate the actuator while checking the Control Panel display.
Note
Press Cancel to stop the test.
s6500-108
Control Panel
Normal
Actuator
Regi Sensor
L - 00
Regi Sensor
H - 00
Regi Sensor
L - 01
