Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 4-23
General Troubleshooting
Exit Sensor
Warning
Allow the Fuser to cool before using this procedure.
1. Enter Service Diagnostics (page 4-8).
2. Open the Front Cover.
3. Run the Exit Sensor test: Engine Diag > Sensor Test > Exit Sensor.

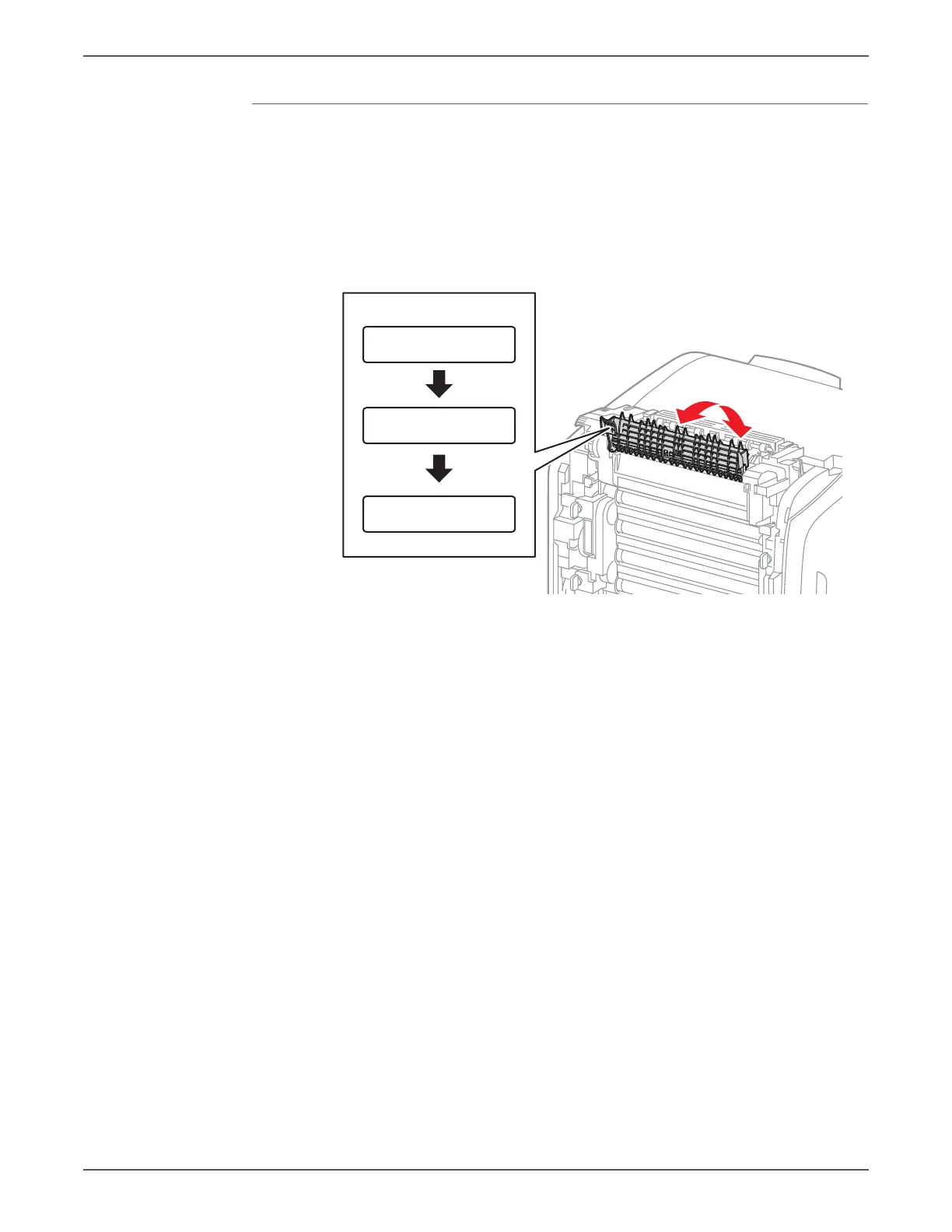

4. Move the chute up and down and check the Control Panel display.
Note
Press Cancel to stop the test.
s6500-109
Control Panel
Normal
Exit Sensor
L - 00
Exit Sensor
H - 00
Exit Sensor
L - 01

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
