Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 2-25
Theory of Operation
Duplex Unit
•Exit Clutch
Transmits the drive from the exit motor to exit roller in the Fuser. When the
clutch operates, the exit roller rotates in the reverse direction. The clutch is
stopped when the paper reached the Duplex.
•Duplex Motor
The Duplex Motor supplies the driving power to the Upper and Lower Duplex
Rollers.
• Exit Motor
The Exit Motor supplies the driving power to the Exit Roller in the Fuser.
•Duplex Board
The PWBA DUP controls motor and clutch.

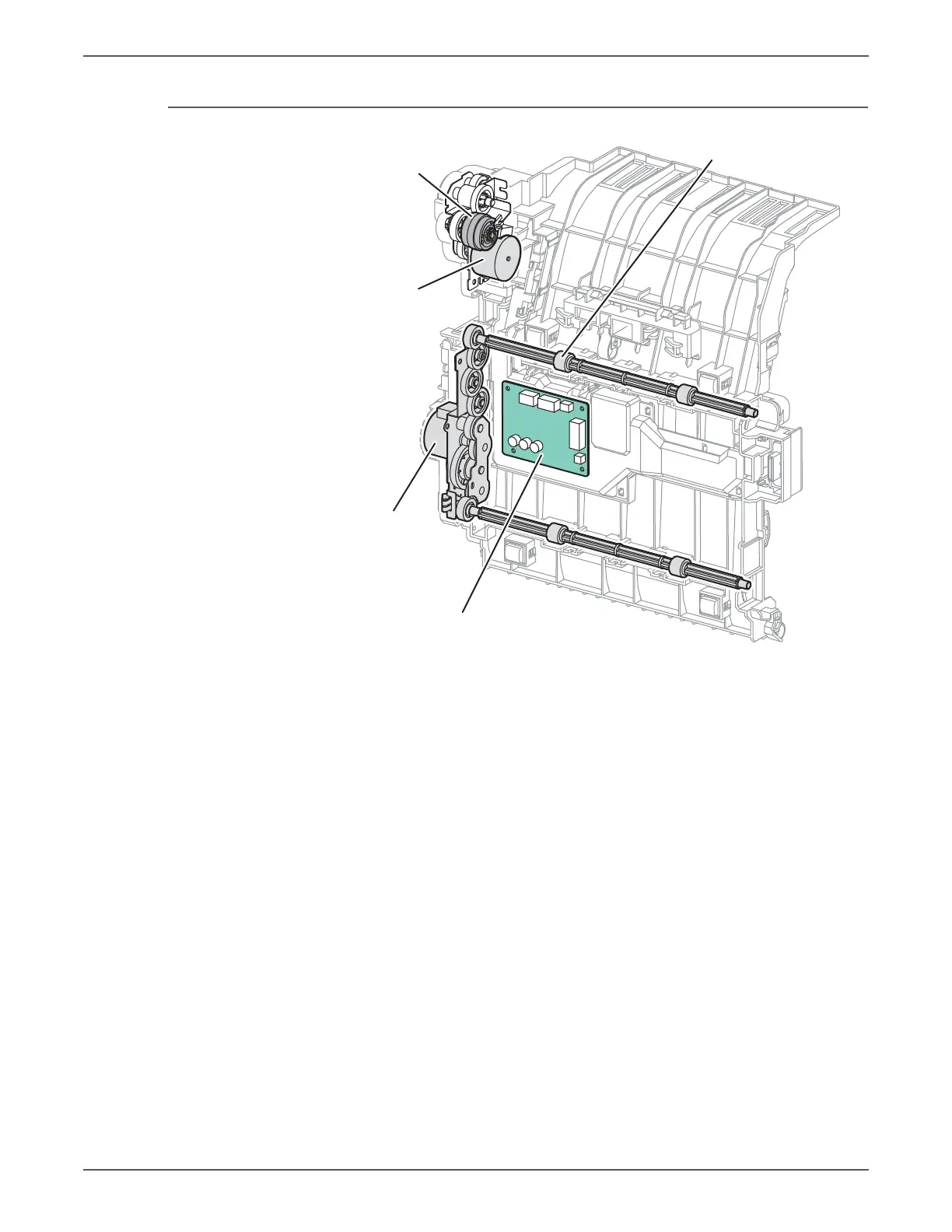

s6500-041
Exit Clutch
Duplex Roller
Duplex Board
Duplex Motor
Exit Motor

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
