Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-139
Service Parts Disassembly
SFP EEPROM Board
SFP PL8.2.16 (PWBA EEPROM [XPRO])
1. Remove Tray 1.
2. Open the Front Cover.
3. Remove the Rear Tray Cover (page 8-19).
4. Remove the Left Side Cover (page 8-18).
5. Remove the Rear Cover (page 8-20).
6. Remove the IP Board Cage (page 8-140).
7. Remove the MCU Board (page 8-138).
Note
If a short Phillips-head screwdriver is unavailable to perform the following
step, remove the Laser Unit (page 8-86) to provide access.

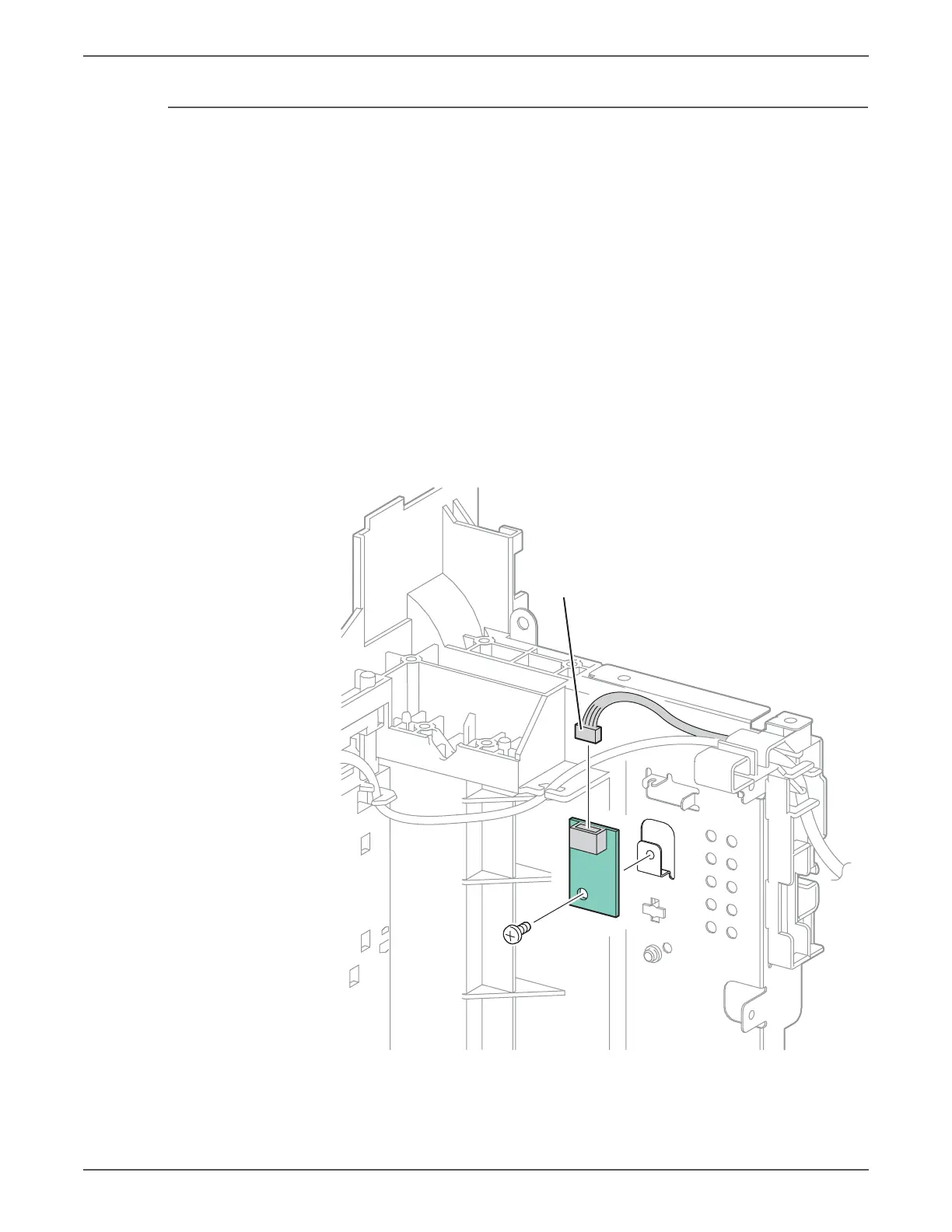

8. Using a short Phillips-head screwdriver, remove the screw (silver, 6mm) that
secures the EEPROM Board to the chassis.
9. Disconnect P/J144 to remove the EEPROM Board.
s6500-326
P/J144

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
