Xerox WorkCentre 6505 Service Manual

8-18 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

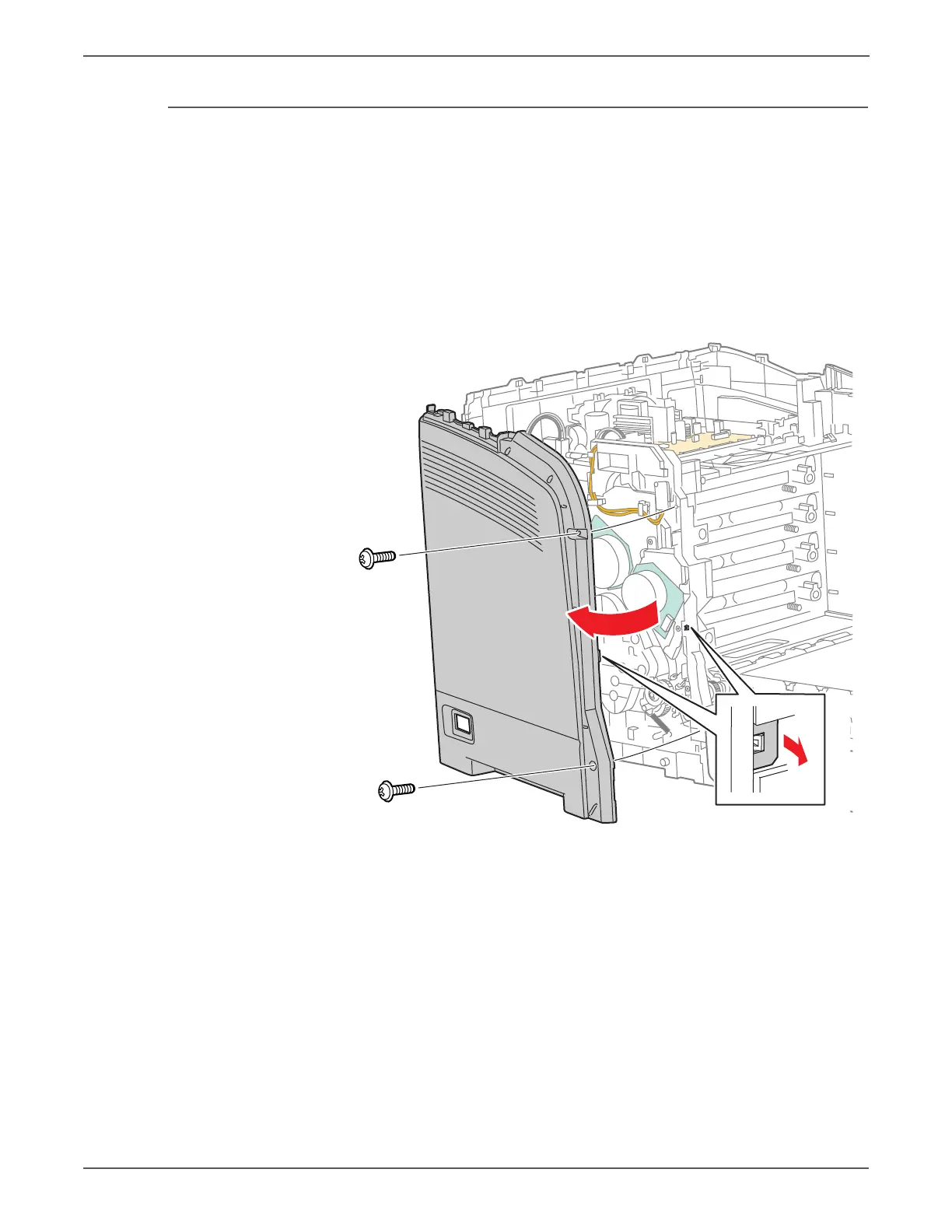

SFP Left Side Cover
PL 1.1.19 (Cover Side L)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Top Cover (page 8-15).
4. Remove the two screws (silver, tap, 8mm).
5. Release the hook at the front of the Left Side Cover.
6. Swing the front edge out to release three hooks on the Rear Cover, and remove
the Left Side Cover from the chassis.
s6500-190
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
