Xerox WorkCentre 6505 Service Manual

8-172 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Option Right Side Cover
PL12.1.7
1. Remove the Optional Feeder (page 8-167).
2. Remove the Front Cover (page 8-168).
3. SFP only: Remove the rear tray cover.
4. SFP only: Remove two screws that secure(s) the Right Side Cover and remove
the cover.
MFP only: Remove the screw (silver, tap, 8mm) that secure(s) the Right Side
Cover, then swing out the front to release the two hooks at the rear.

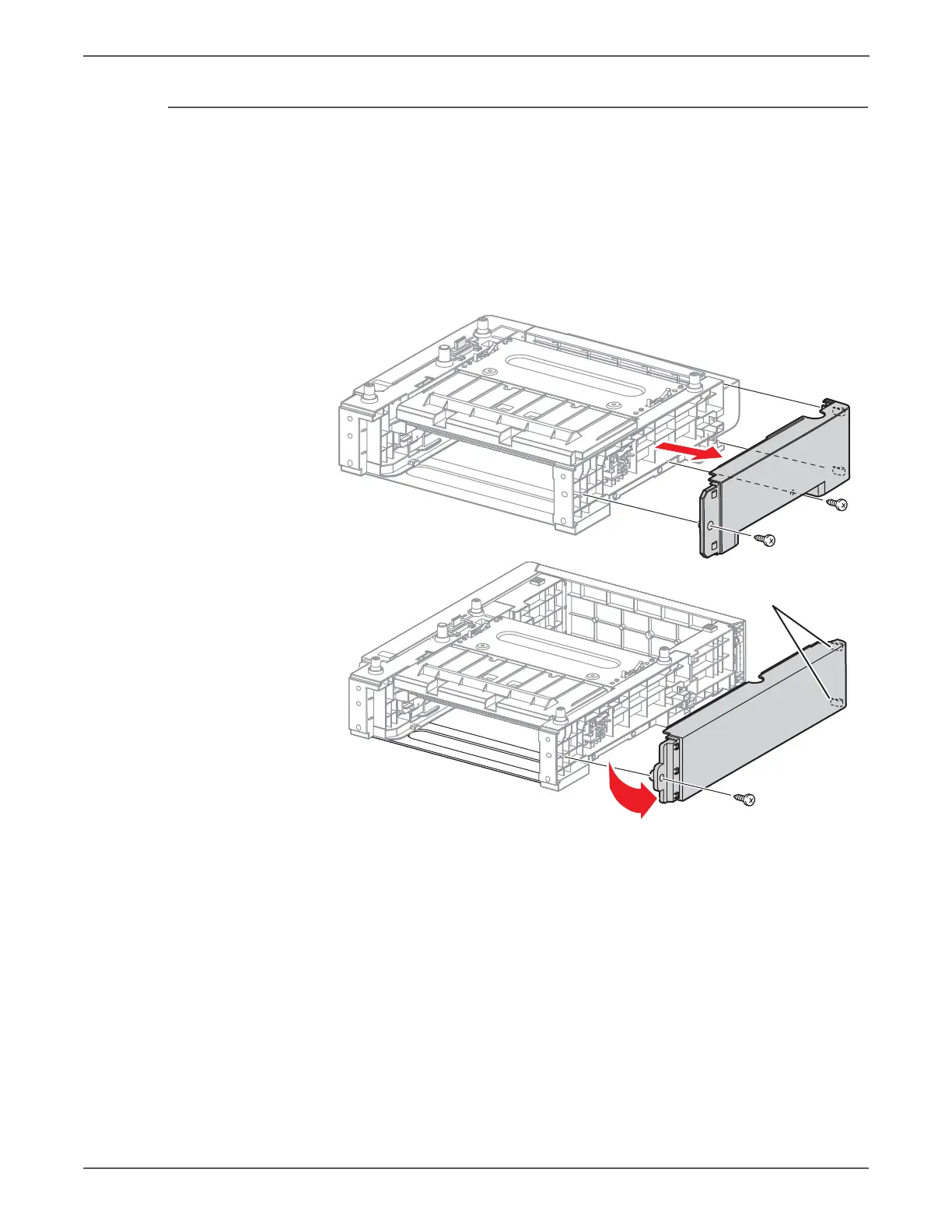

s6500-355
MFP
SFP
Hooks
