Xerox WorkCentre 6505

8-168 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Option Front Cover
PL12.1.8
1. Remove the Optional Feeder (page 8-167).
2. Remove the Tray.

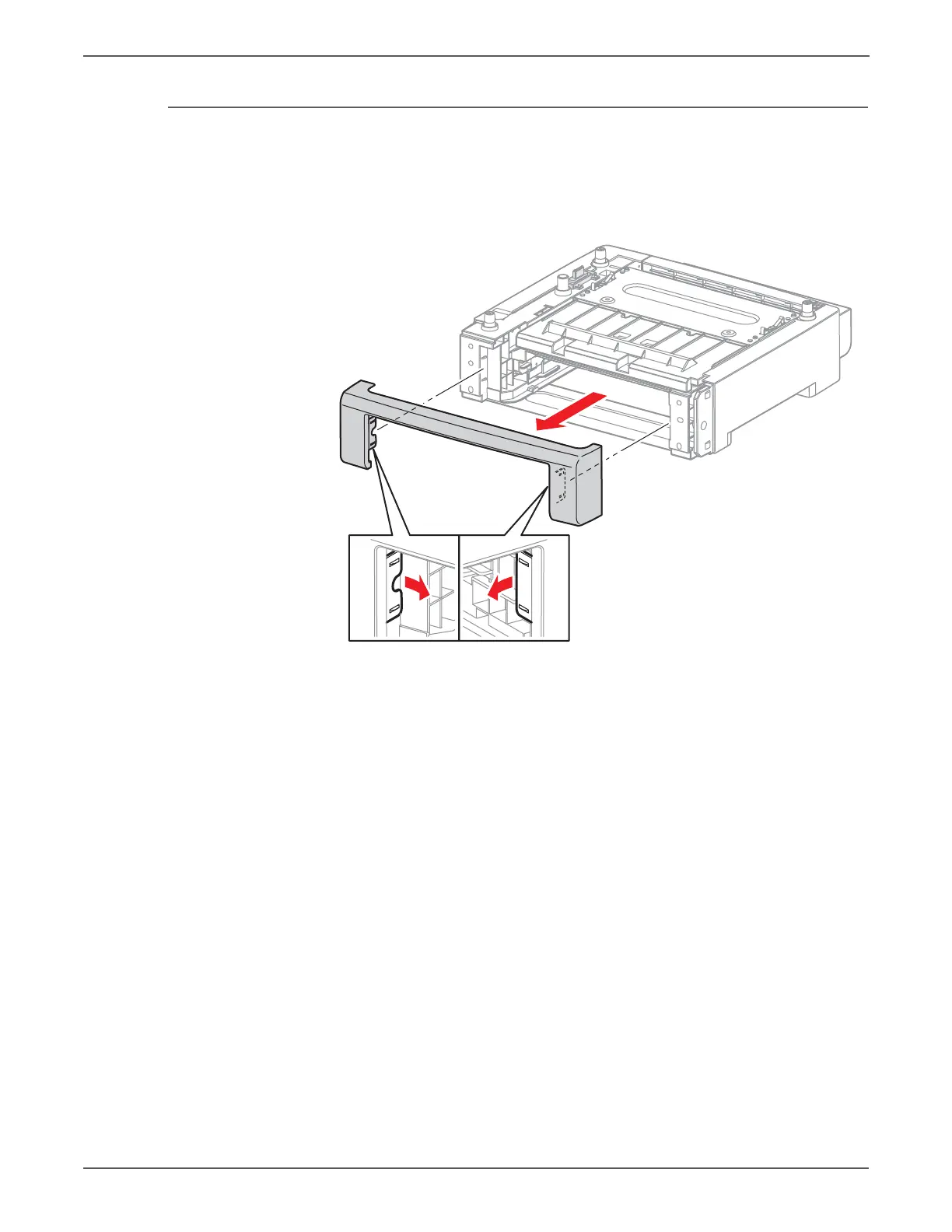

3. Release four hooks that secure the front cover.
s6500-354
