Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 5-41
Print-Quality Troubleshooting
Lines or Streaks (from ADF)
There are lines or streaks on copies from the ADF.
Initial Actions
• Check the document glass.
• Ensure there are no debris on the document glass.
Troubleshooting Reference Table

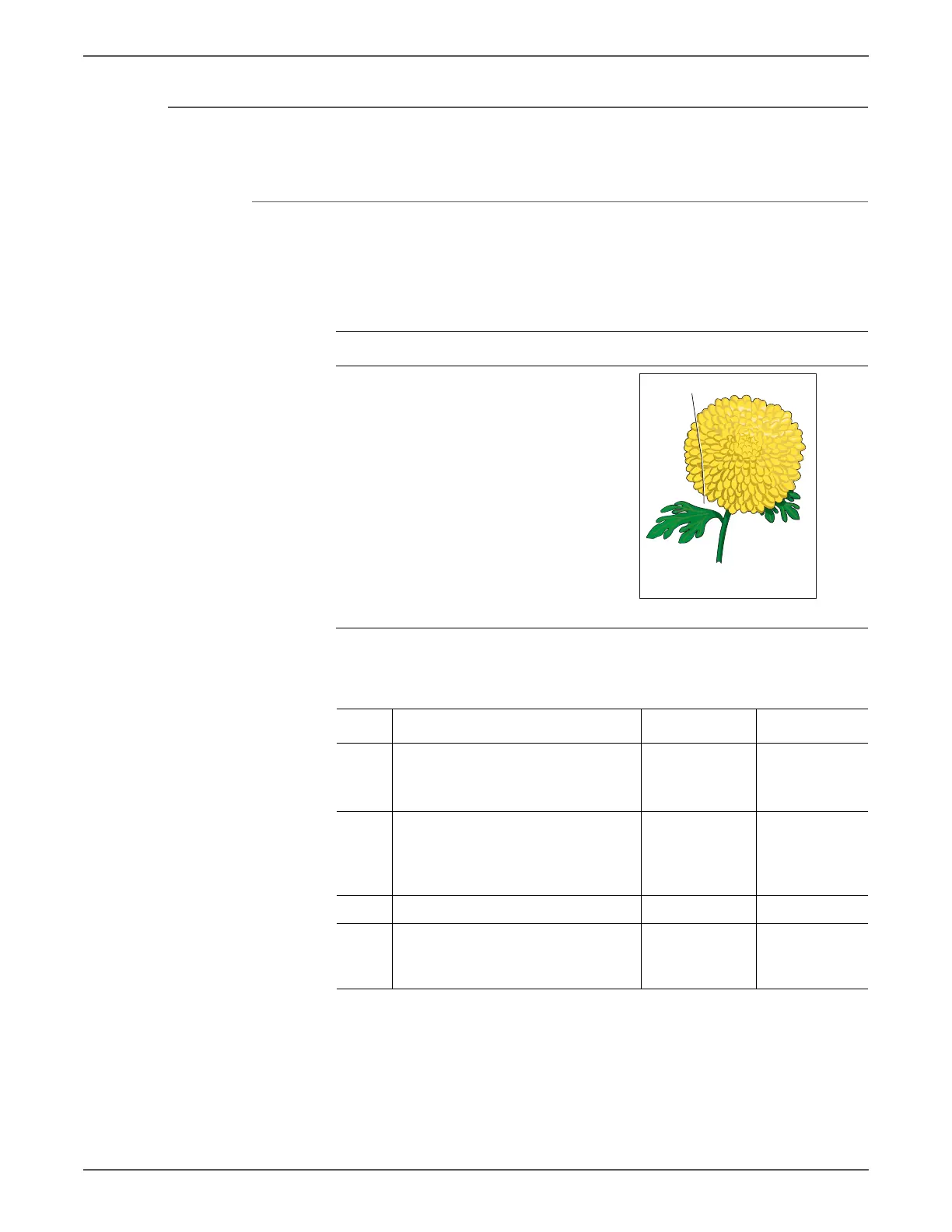

Applicable Parts Example Print
ADF Scanner Assembly, PL11.1.1
Troubleshooting Procedure
Step Actions and Questions Yes No
1 1. Check the output document.
2. Are there lines or streaks on the
document?
Replace the
original
document.
Go to step 2.
2 Are there debris on the document
glass?
Clean the
document glass
using a lint-free
cloth.
Go to step 3.
3 Does the image quality improve? Complete. Go to step 4.
4 Are there scratches on the
document glass?
Replace the IIT
Sub-Assembly
(page 8-195).
Complete.
Scratch on Glass

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
