Xerox WorkCentre 6505 Service Manual

8-64 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
MFP LVPS Card Cage
MFP PL8.2.13 (Chassis LVPS)
This procedure removes the entire LVPS enclosure including the Fan. Although it is
not associated with any one part, it is a prerequisite for other procedures.
1. Perform the service preparation steps on page 8-3.
2. Open the MFP Front Cover.
3. Remove the MFP Left Side Cover (page 8-37).
4. Remove the MFP IP Board Cover (page 8-38)
5. Remove the Outer Pole Cover (page 8-39).
6. Remove the MFP Right Side Cover (page 8-40).
7. Remove Inner Pole Cover (page 8-44)
8. Remove the MFP Rear Cover (page 8-43).
9. Remove the MFP Top Cover (page 8-45).

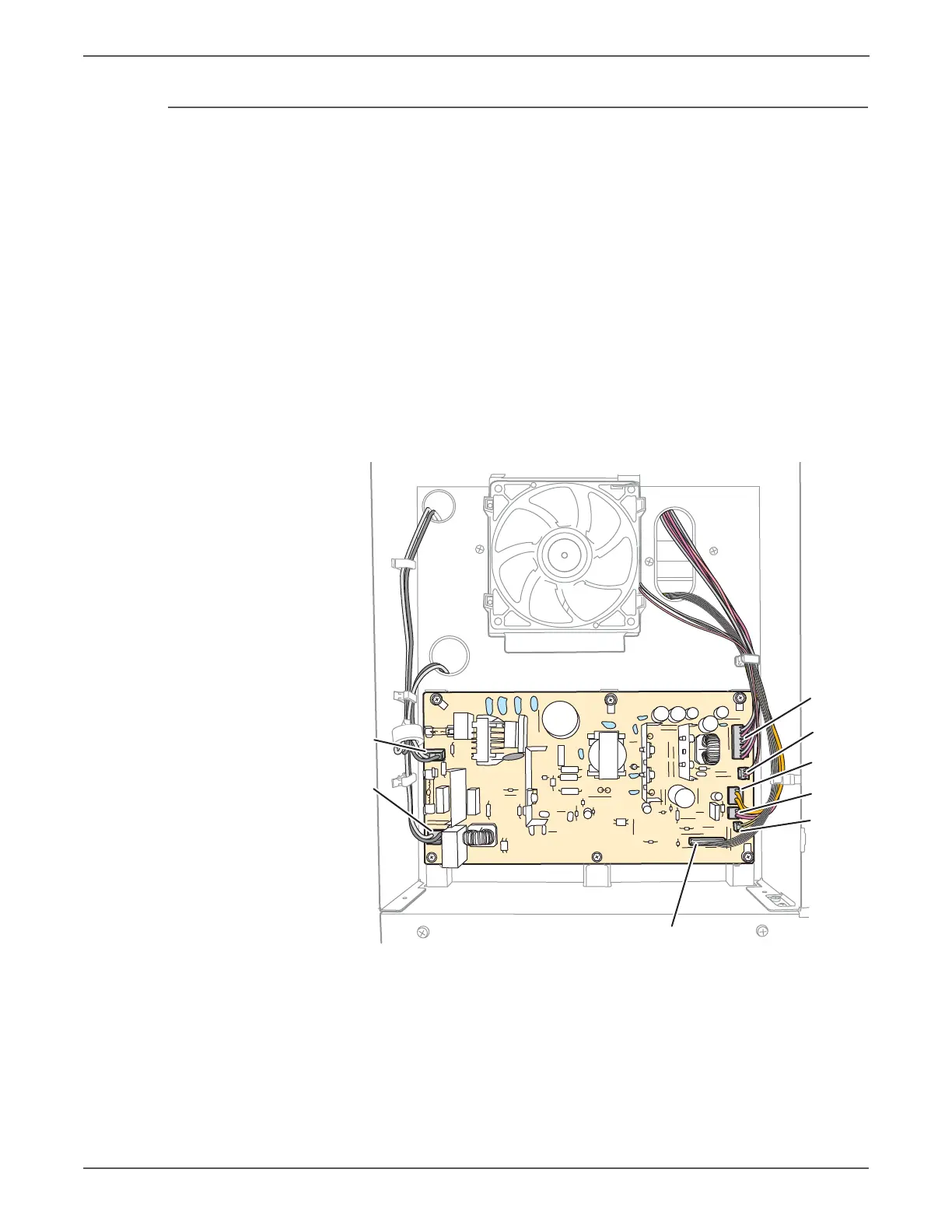

10. Disconnect all connectors on the LVPS and release the harnesses from the two
clamps on the card cage.
s6500-256
P/J48
P/J47
P/J40
P/J503
P/J44
P/J502
P/J504
P/J501
