Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 2-27
Theory of Operation

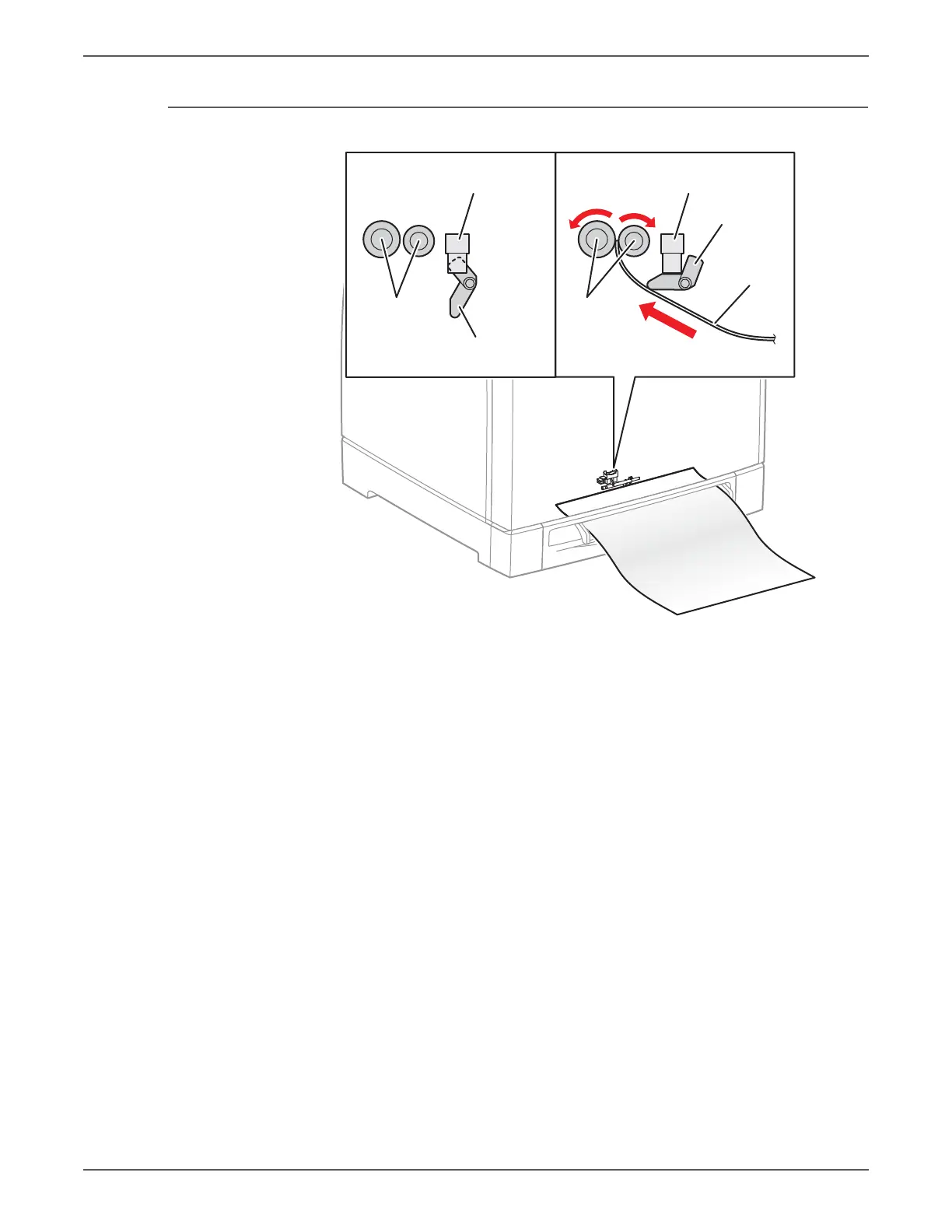

Manual Feed & Registration
• Manual Feed No Paper Sensor
Detects media in the Manual Feed slot by the change in actuator position.
Upon detecting the sheet, the Registration Roller rotates for a predetermined
duration to feed the sheet. The rollers stop immediately when the Registration
Sensor detects the media.
• Registration Sensor
The Registration Sensor detects paper when the paper leading edge reaches
the registration chute. When paper is fed from the Manual Feed slot, the
Registration Sensor measures the paper length. The On time of the
Registration Sensor determines the media length.
s6500-043
Manual Feed
No Paper Sensor
Manual Feed
No Paper Sensor
Paper
Manual Feed Actuator
(No Paper Position)
Manual
Feed Actuator
Registration
Rollers
Registration
Rollers

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
