Theory of Operation
• Registration Clutch
The Registration (Drive) Clutch transmits drive energy from the Main Drive to
the rubber registration roller, and transports paper from the Tray and Manual
Feed slot toward the Imaging Unit. The registration clutch must engage and
start the paper moving so that it reaches the Imaging Unit at the correct time
to pick up the toner image.

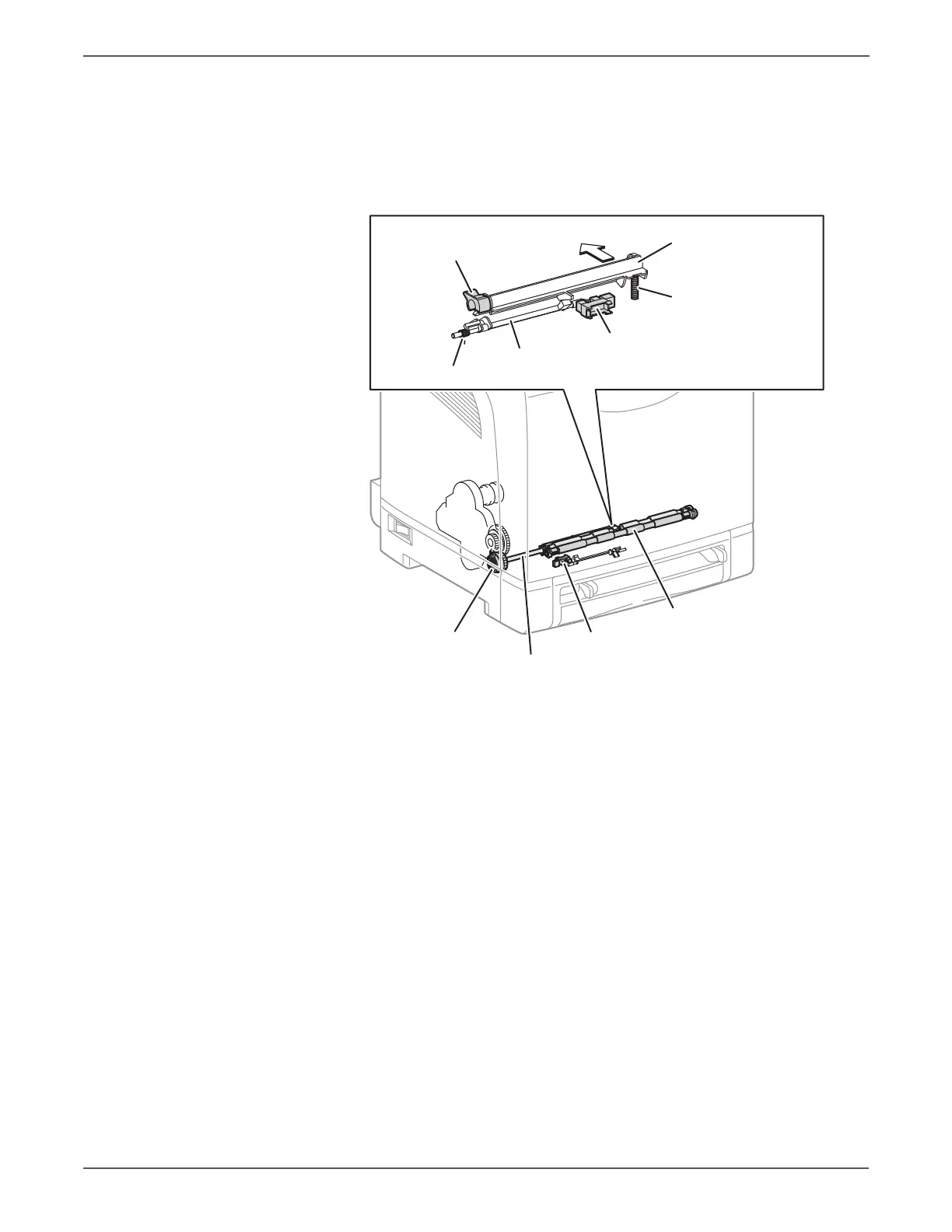

s6500-044
Registration Sensor
Rubber Registration Roller
Metal Registration Roller
Registration Clutch
Registration
Output Spring
Registration Actuator Spring
Registration
Out Actuator
Registration In Actuator
Registration Roller Actuator
Registration Sensor
Rear View
Front
