Xerox WorkCentre 6505 Service Manual

5-42 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Print-Quality Troubleshooting
Spots from ADF
There are spots on copies from the ADF.
Initial Actions
• Check the document glass.
• Ensure there are no debris on the document glass.
Troubleshooting Reference Table

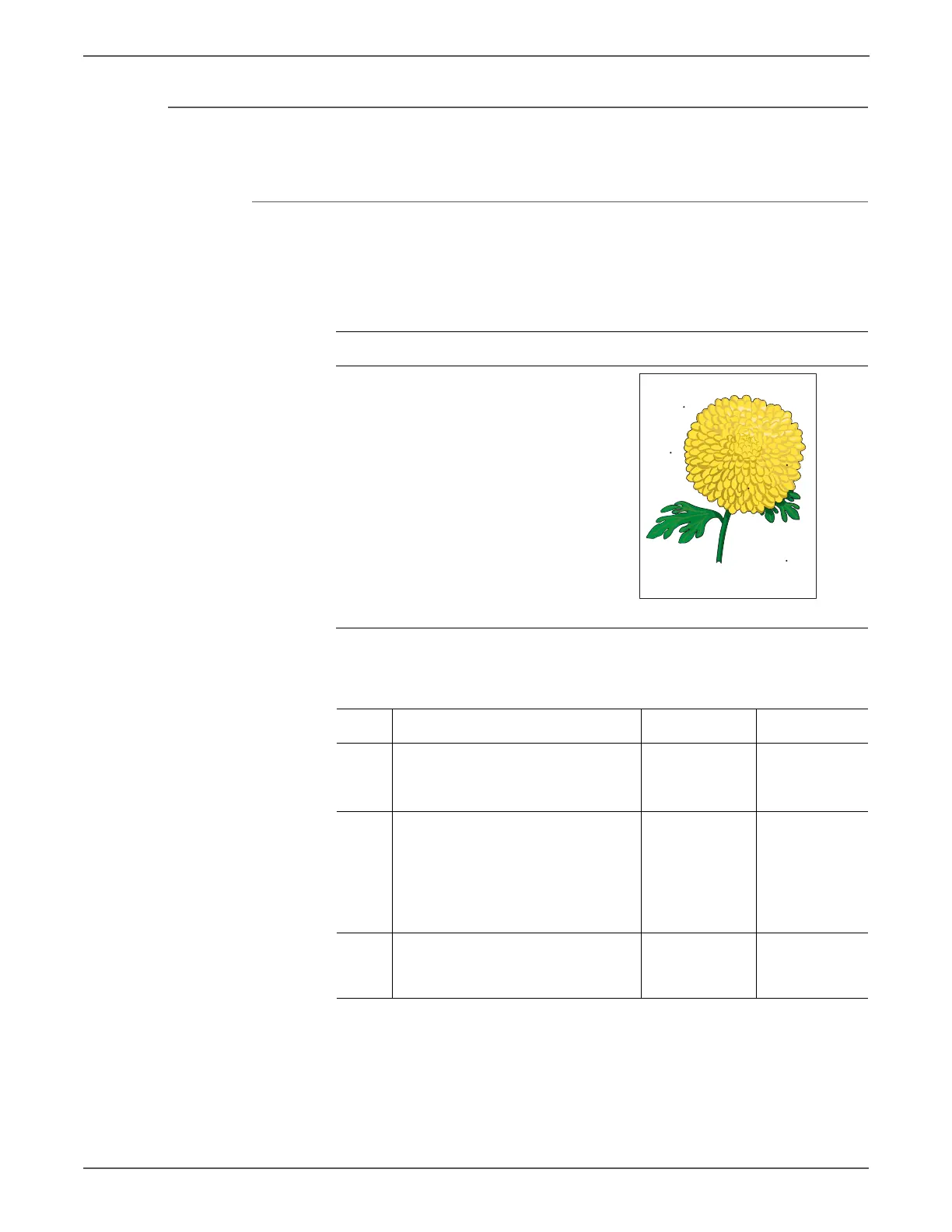

Applicable Parts Example Print
ADF Scanner Assembly, PL11.1.1
Troubleshooting Procedure
Step Actions and Questions Yes No
1 1. Check the original document.
2. Are there spots on the original
document?
Replace the
original
document.
Go to step 2.
2 1. Check for any debris on the
document glass and the CVT
window.
2. Are there any debris?
Remove the
debris and
clean the
document glass
using a lint-free
cloth.
Go to step 3.
3 Does the image quality improve? Complete. Replace the IIT
Sub-Assembly
(page 8-195).
Spots on Glass
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
