Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-43
Service Parts Disassembly
MFP Rear Cover
MFP PL1.1.5 (Cover Rear)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (page 8-37).
4. Remove the Right Side Cover (page 8-40)

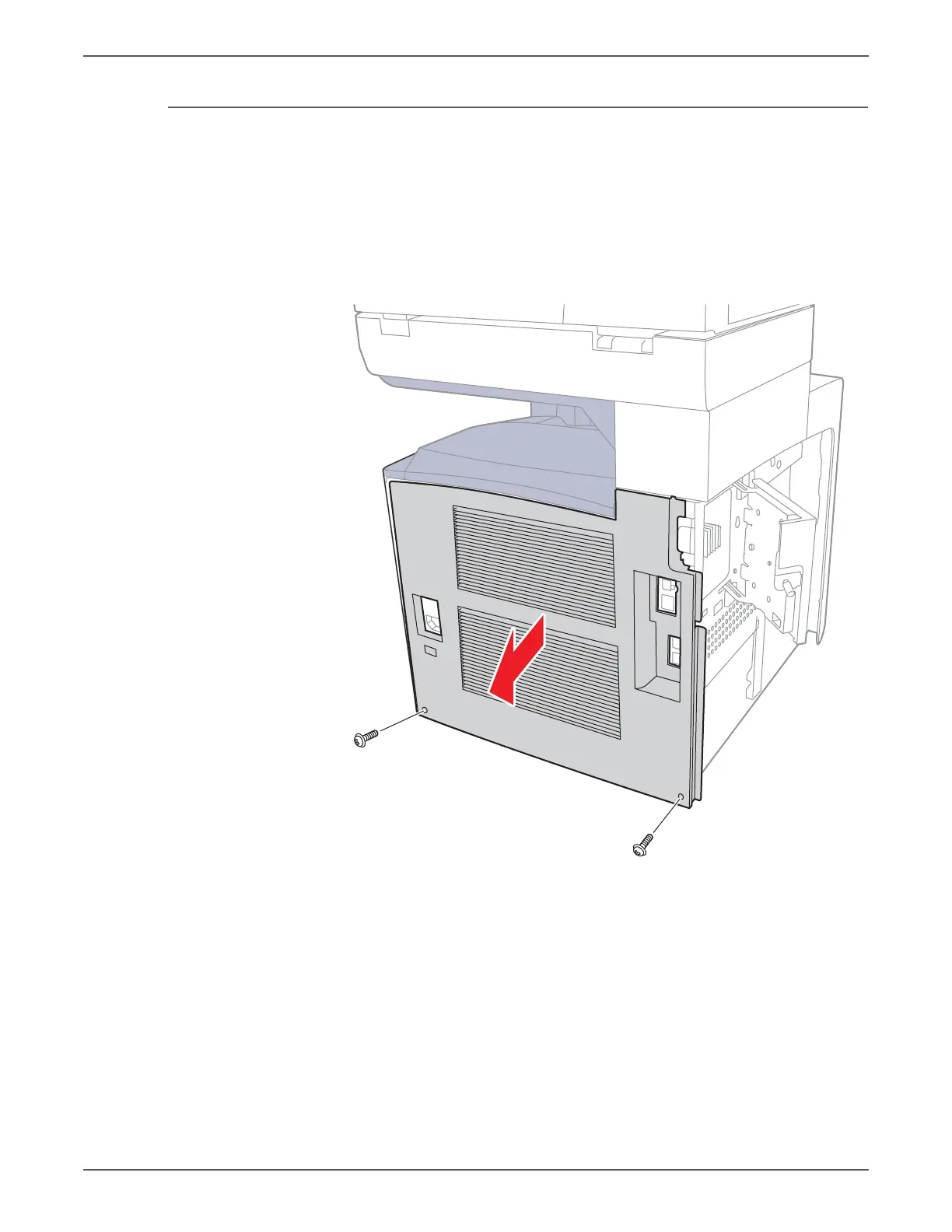

5. Remove the two screws (silver, tap, 8mm) that secure the Rear Cover, and
remove the cover from the MFP.
s6500-219

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
