2-34 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Theory of Operation
Toner Cartridge & Dispenser
The toner dispensing system is the same in both the SFP and MFP.
The Toner Dispenser includes the following components:
• Toner Cartridges (C/M/Y/K)
The Toner Cartridge is a customer replaceable item. The Toner cartridge
includes a CRUM (Customer Replaceable Unit Monitor) that stores printer-
specific information.
•CRUM Connector
The CRUM connector allows data transfer to and from the CRUM.
• Toner Motor (C/M/Y/K)
The toner motors provide the drive for the agitator and auger in each Toner
Cartridge, and supply toner to the developer.

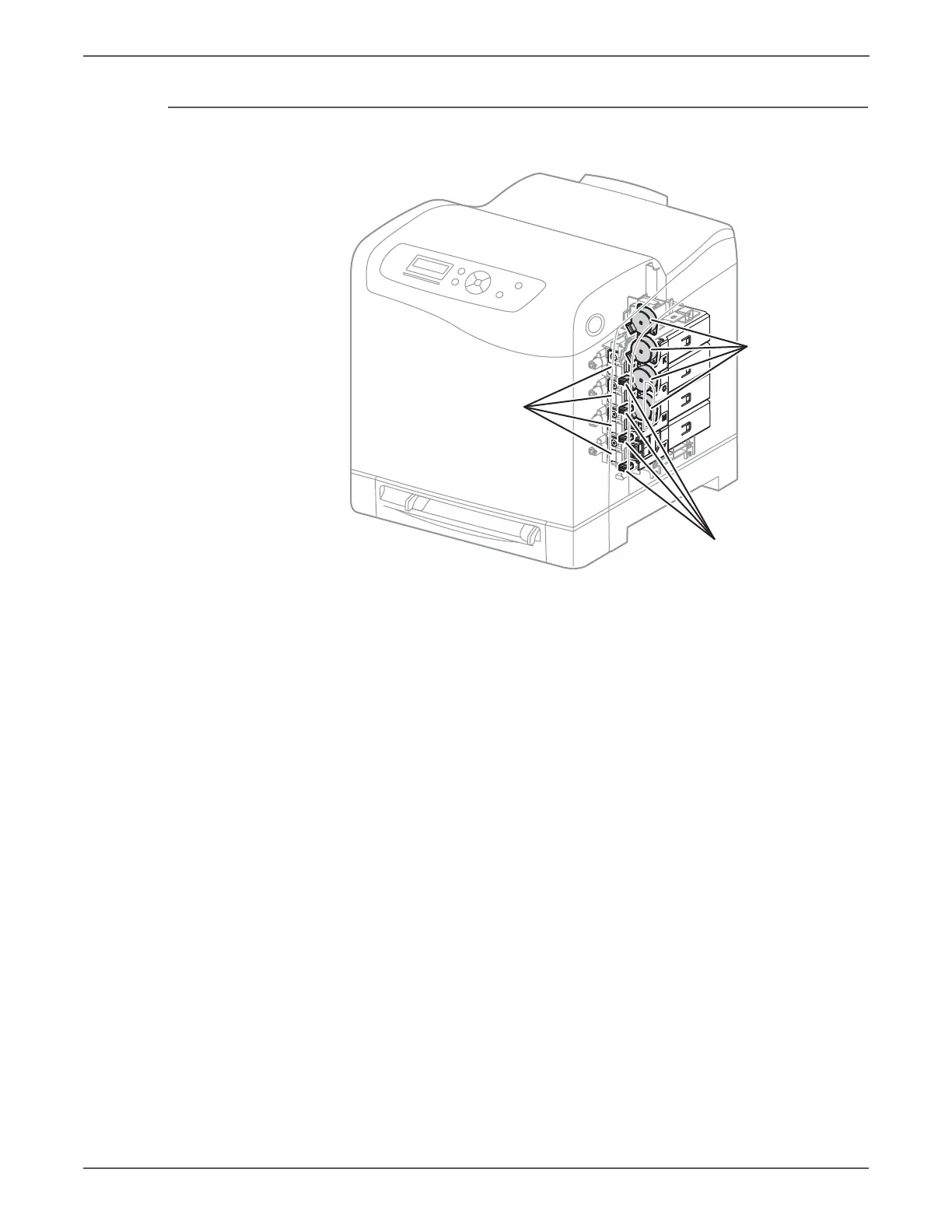

s6500-050
Dispenser Motors
Toner Cartridges
CRUM Connectors
