4-42 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
General Troubleshooting
Optional Feeder Test Procedures
Tray 2 No Paper Sensor
1. Enter Service Diagnostics (page 4-8).
2. Run the Tray No Paper test: Engine Diag > Sensor Test > Tray 2 No Paper.
3. Remove Tray.
4. Move the Actuator up and down while checking the Control Panel display.
Note
Press Cancel to stop the test.

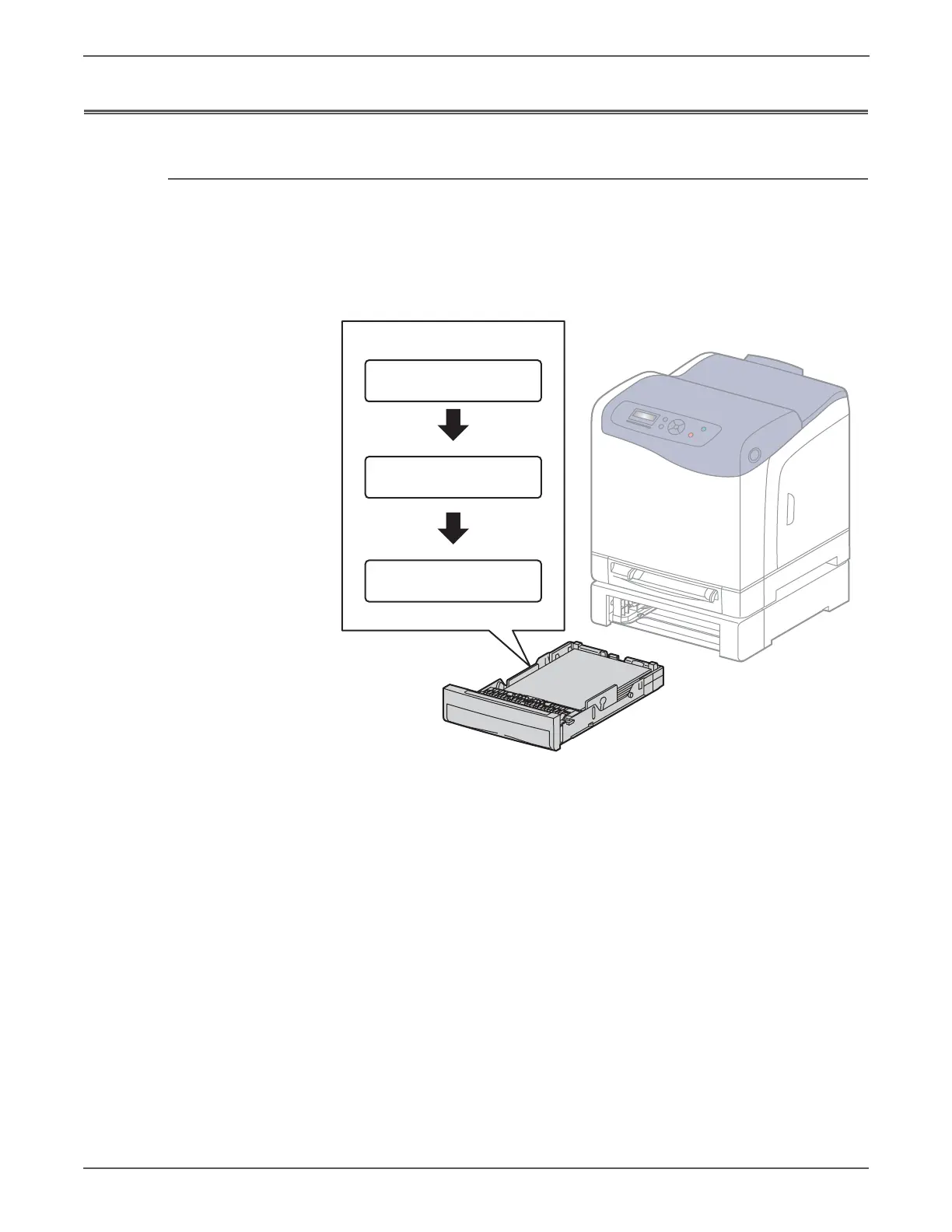

s6500-129
Control Panel
Normal
Option No Paper
L - 00
Option No Paper
H - 00
Option No Paper
L - 01
