Xerox WorkCentre 6505 Service Manual

8-104 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
MFP Dispenser Assembly
PL5.1.1 (Dispenser Assy)
1. Perform the service preparation steps on page 8-3.
2. Remove the Left Side Cover (page 8-37).
3. Remove the Outer Pole Cover (page 8-39).
4. Remove the IP Board Shield (page 8-142).
5. Remove the Right Side Cover (page 8-40).
6. Remove the Rear Cover (page 8-43).
7. Remove the Inner Pole Cover (page 8-44).
8. Remove the Lower Scanner Cover (page 8-46).
9. Remove the Top Cover (page 8-45).
10. Remove the LVPS Card Cage (page 8-64).
11. Remove the IIT Subassembly (page 8-195).
12. Remove the Top Plate Assembly (page 8-59).
13. Remove the MFP Inlet Chassis (page 8-63).
14. Remove the Toner Cartridge Holders (page 8-107).

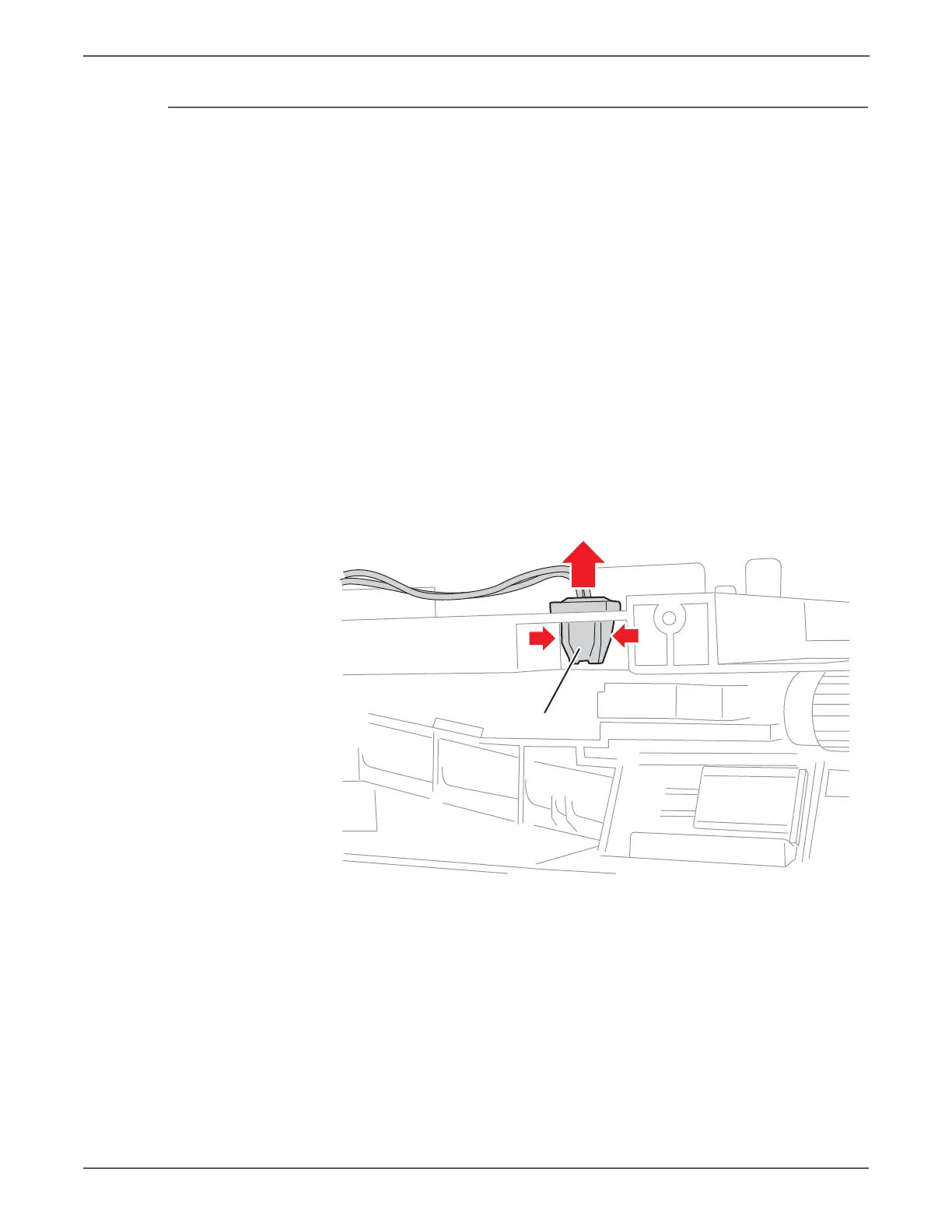

15. Release the hook of the connector of the MCU HAN Harness using a pliers,
and remove it from the Dispenser Assembly.
s6500-280
P/J5041
