Xerox WorkCentre 6505 Service Manual

5-40 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Print-Quality Troubleshooting
Incorrect Magnification
Incorrect magnification when copying with the ADF feeding.
Initial Actions
• Check the paper transfer path.
• Ensure there are no debris on the transfer path.
Troubleshooting Reference Table

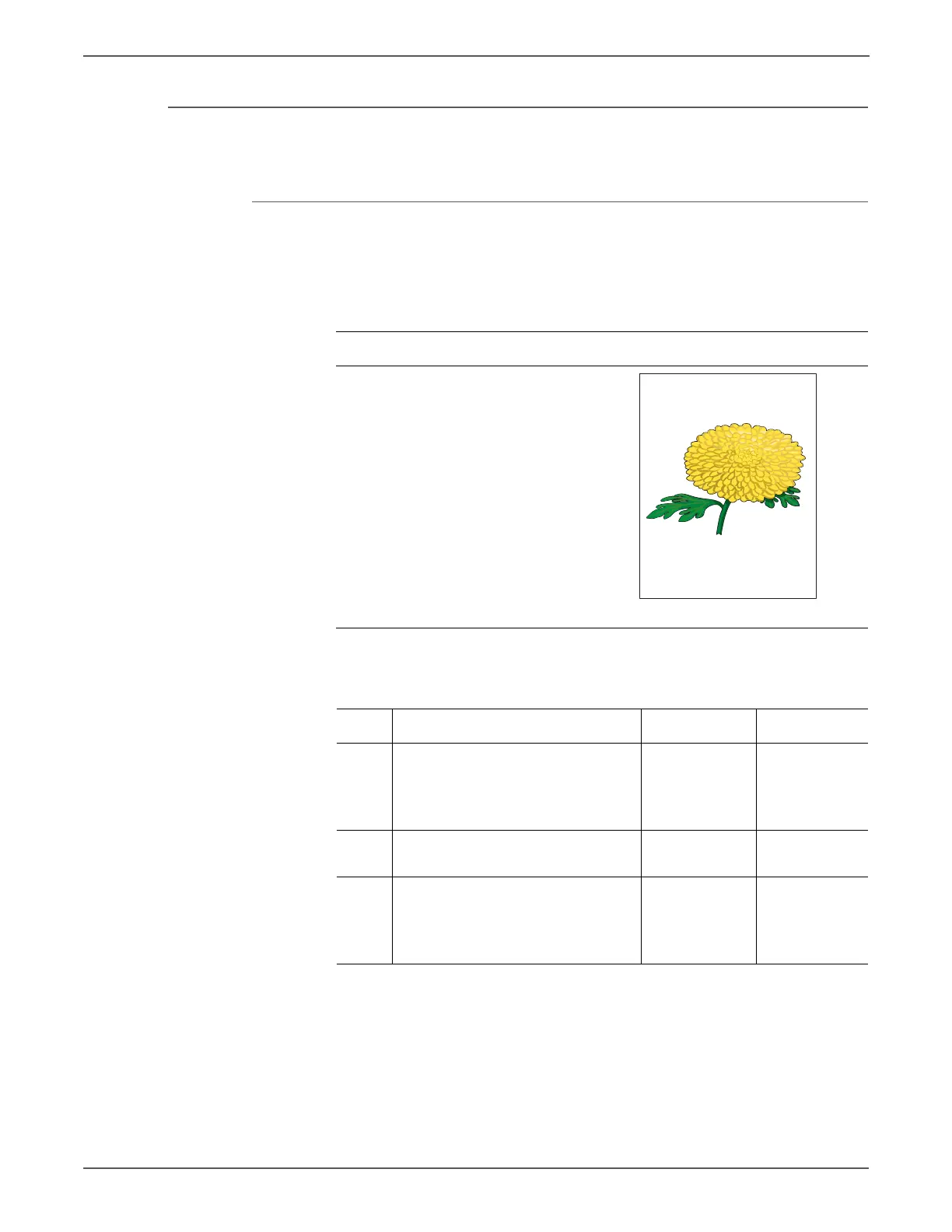

Applicable Parts Example Print
ADF Scanner Assembly, PL11.1.1
Troubleshooting Procedure
Step Actions and Questions Yes No
1 1. Check the paper condition.
2. Is the paper dry, recommended,
loaded in the correct position, and
meet the ADF specifications?
Go to step 2. Replace the
paper or use
the platen
mode.
2 Is the ADF closed against the
document glass completely?
Go to step 3. Close the ADF.
3 1. Perform Scanner Calibration
procedure (“Scanner Parameter
Setting” on page 6-11).
2. Does the error still occur?
Replace the IIT
Sub-Assembly
(page 8-195).
Complete.
Magnification Incorrect
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
