Print-Quality Troubleshooting
Pitch Chart Test Print
Horizontal lines and/or spots that occur
periodically are usually caused by one of
the printer’s many rollers. However, the
interval does not necessarily match the
circumference of the roller. Compare the
print defect intervals on the test print with
the gauges on the Pitch Chart that can be
printed from the Printer Diagnostics in
Service Mode. The problem may be solved
easily by the check.

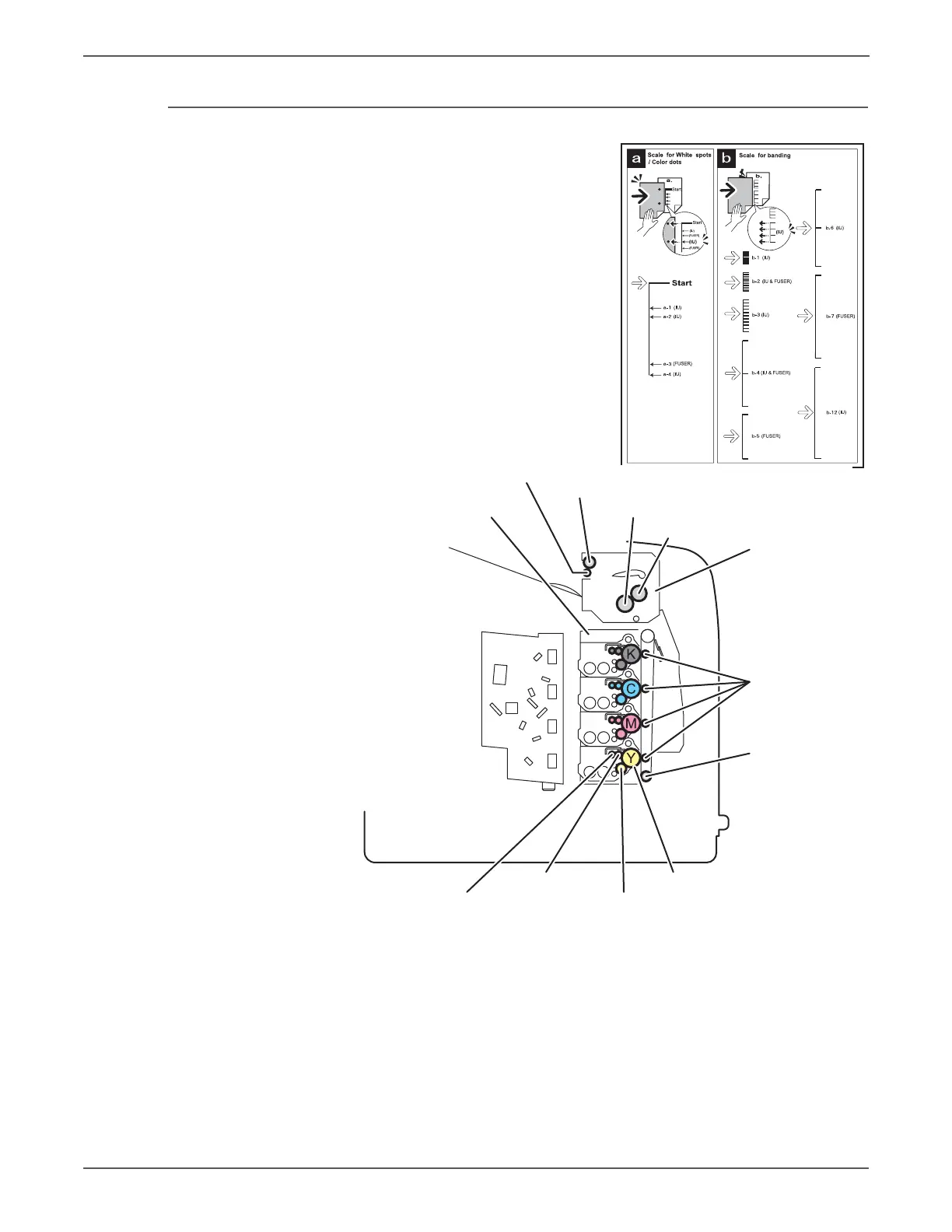

To print the Pitch Chart, print the
Contamination Check test prints: Test
Print > Contamination Check.
s6500-155
s6500-156
Exit Roller
Heat Roller
Exit Pinch Roller
Pressure Roller
Bias Transfer
Rollers
Imaging Unit
Drive Roller
Fuser
Drum
BCR Cleaner Roller Magnet Roller
BCR
