Xerox WorkCentre 6505 Service Manual

4-46 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
General Troubleshooting
Tray 2 Drive Clutch
The Tray 2 Drive Clutch engages drive to the turn rollers. To test the Drive Clutch.
Note
Do not remove the Optional Feeder from the printer and close the Interlock
Switch to provide power to the device under test.
1. Enter Service Diagnostics (page 4-8).
2. Run the Option Turn Roll test: Engine Diag > Motor Test > Tray 2 Turn Roll.

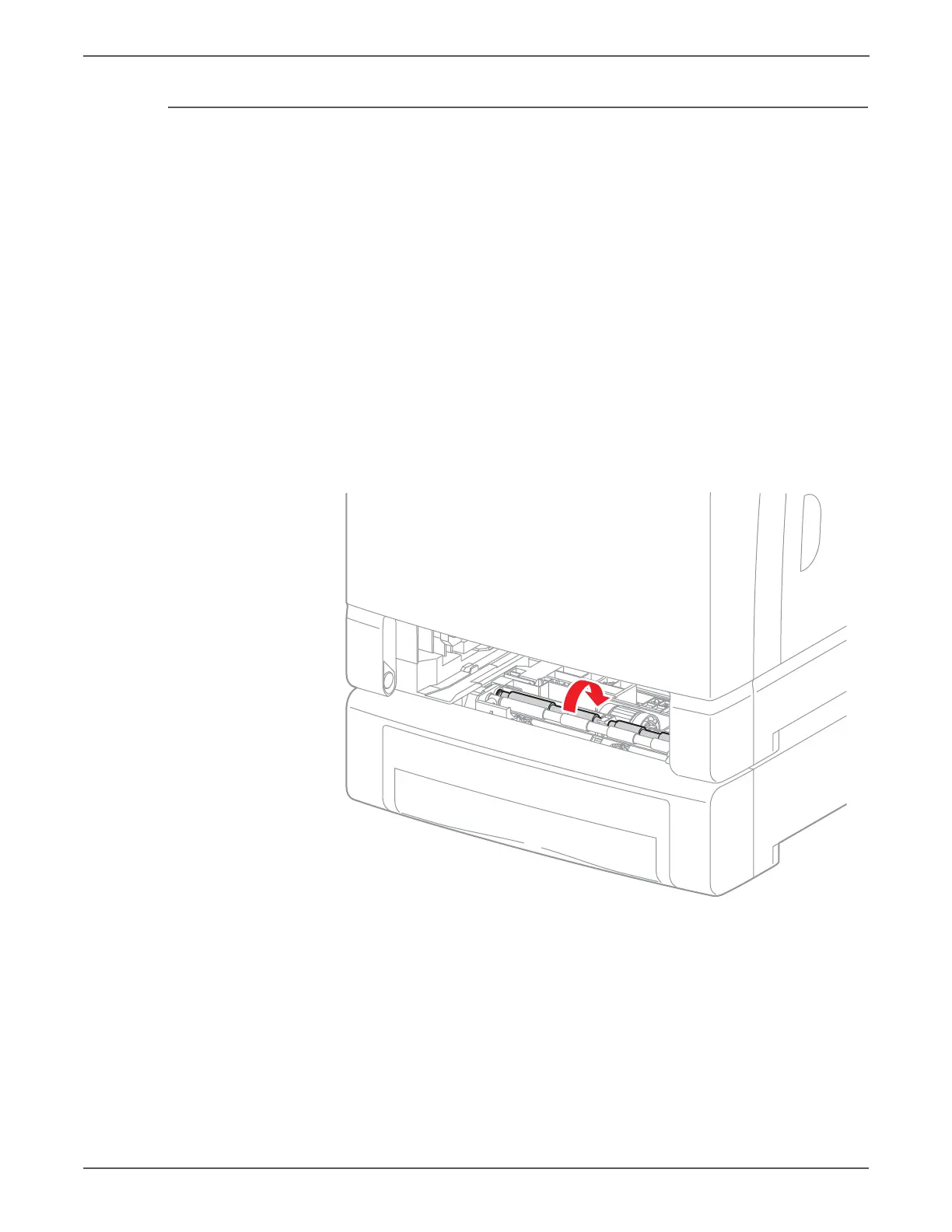

A click occurs when the clutch is energized.To test the turn clutch in combination
with the turn rollers:
1. Enter Service Diagnostics (page 4-8).
2. Remove Trays 1 and 2.
3. Run the Option Feeder Motor Full2 test: Engine Diag > Motor Test > Tray 2
Feeder Motor Full2.
4. While the motor is running, press the Up Arrow button to find Option Turn
Roll. Press the OK button to run the test.
5. Check that the turn rollers are rotating.
6. Press Cancel to stop the test.
7. Press the Down arrow to find Option Feeder Motor Full2.
8. Press Cancel to stop the test.
s6500-133
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
