8-80 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Registration Sensor
PL3.2.13 (Sensor Photo)
Caution
The Registration Out Actuator is spring-loaded by a small spring located under
the actuator.

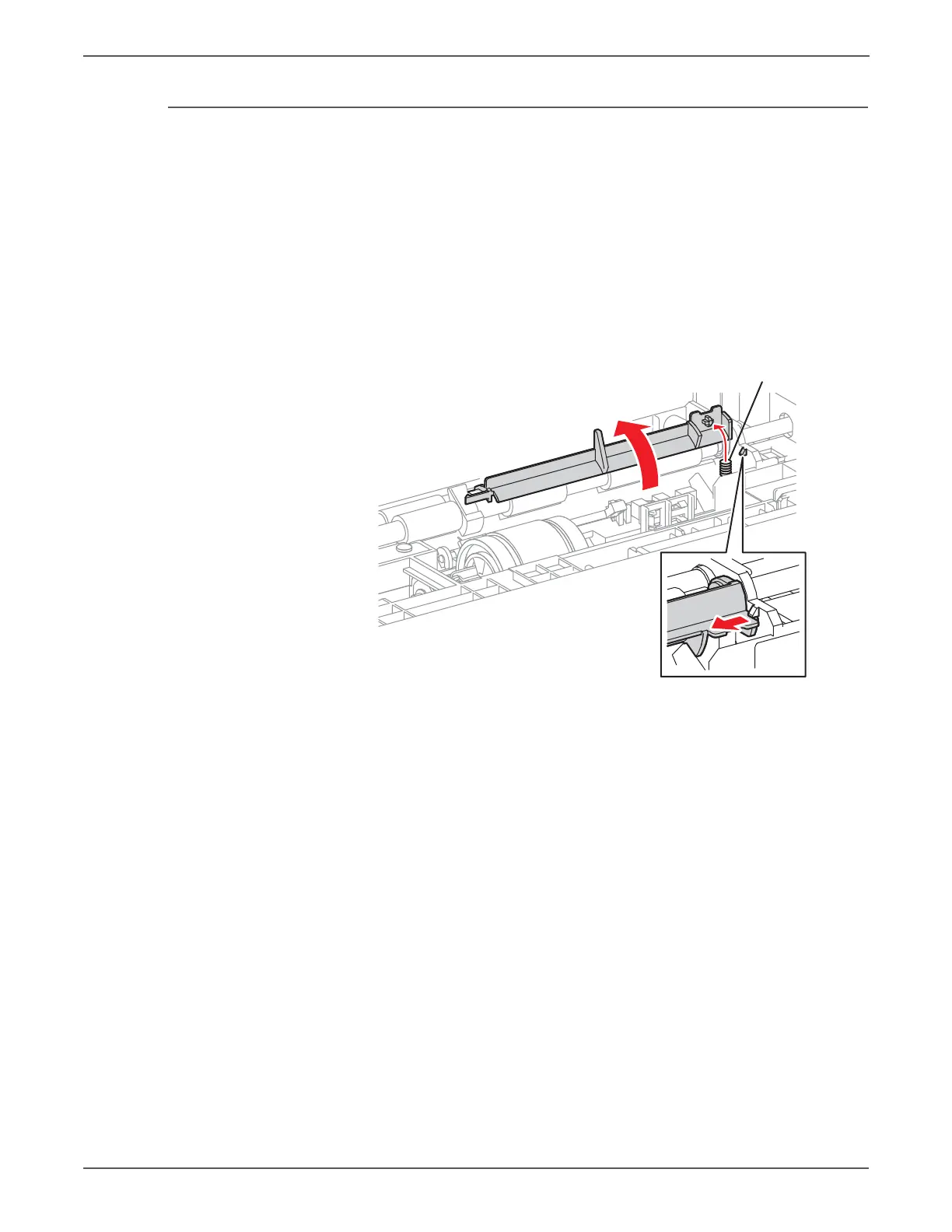

1. Remove the Upper Frame Assembly (SFP page 8-51; MFP page 8-67).
2. Release the hook on the Registration Out Actuator that attaches it to the
Registration Roller Actuator; shift the Registration Roller Actuator to the right.
3. Release the Registration Out Actuator from the hook on the Upper Feeder
Chute, then rotate the Registration Out Actuator up.
s6500-493
Registration Out Spring
