Service Parts Disassembly

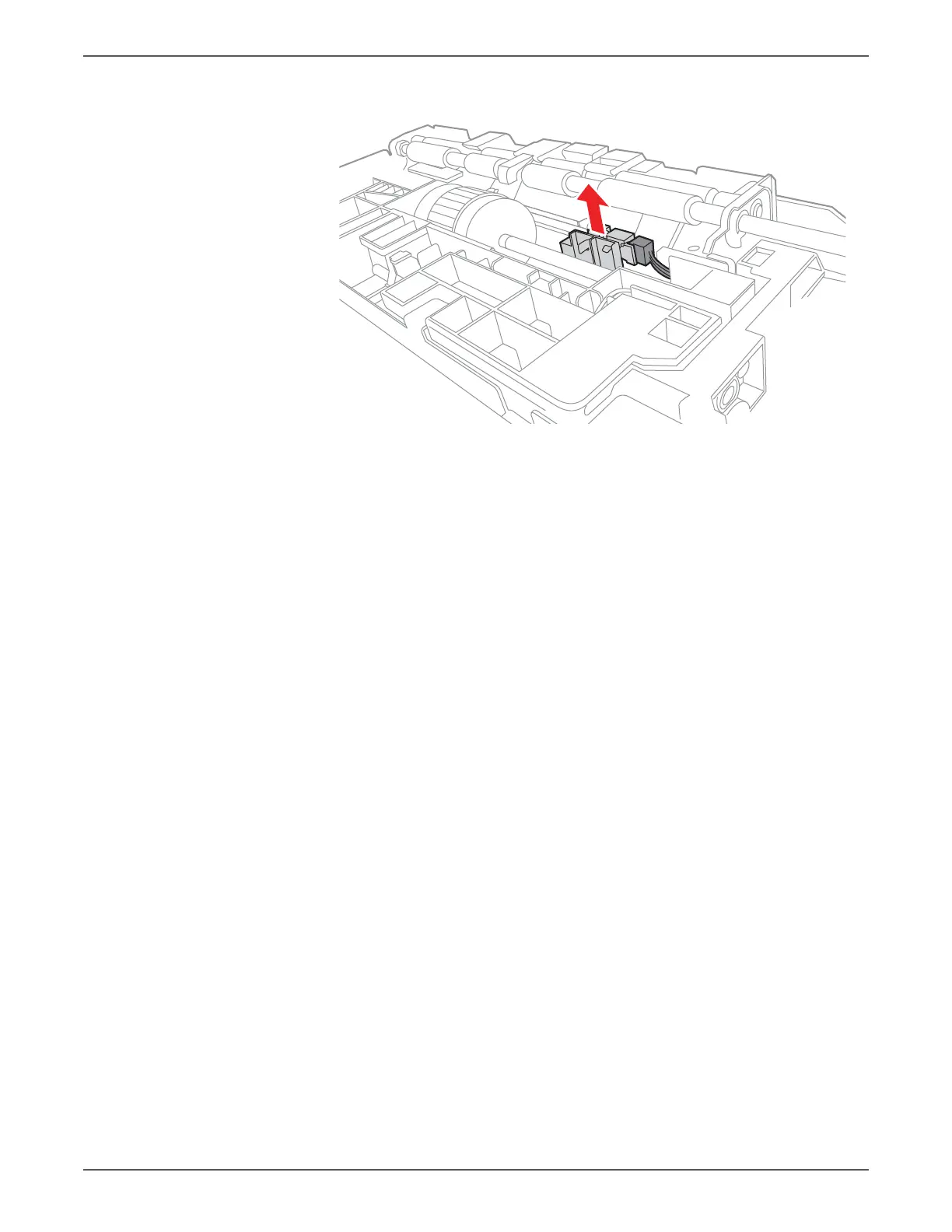

4. Release 3 hooks that secure the Registration Sensor to the Feeder Assembly
and remove the sensor.
5. Disconnect P/J232 from the Registration Sensor.
s6500-248
