Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-21
Service Parts Disassembly
SFP Toner Door
SFP PL1.1.7 (Cover Assy Window TNR)
1. Perform the service preparation steps on page 8-3.
2. Remove the Right Side Cover (page 8-17).
3. Open the Toner Door.

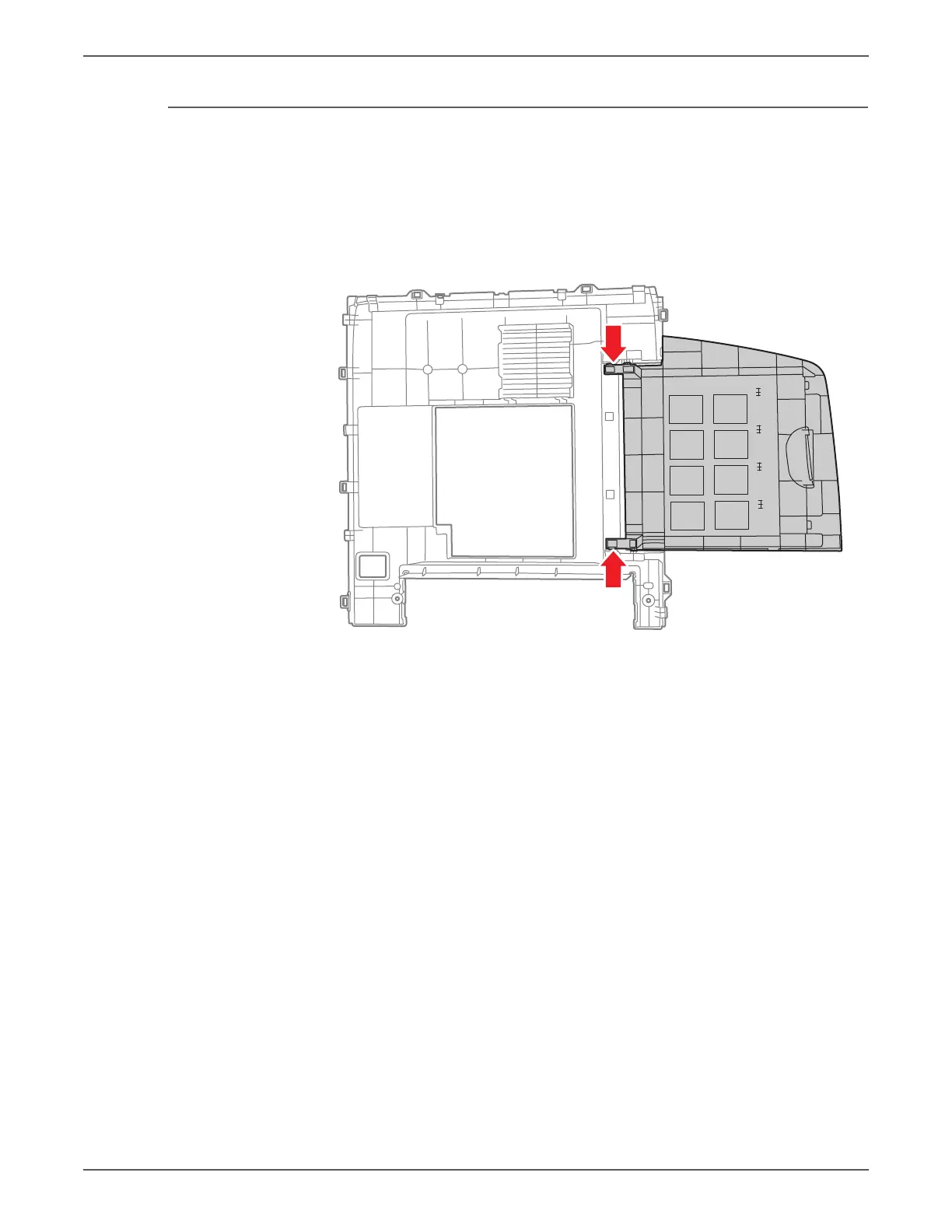

4. Release the bosses on the upper and lower hinge arms from the pivot holes in
the Rear Cover.
s6500-189
To Next Page
