Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 2-69
Theory of Operation
ADF Drive
ADF Motor

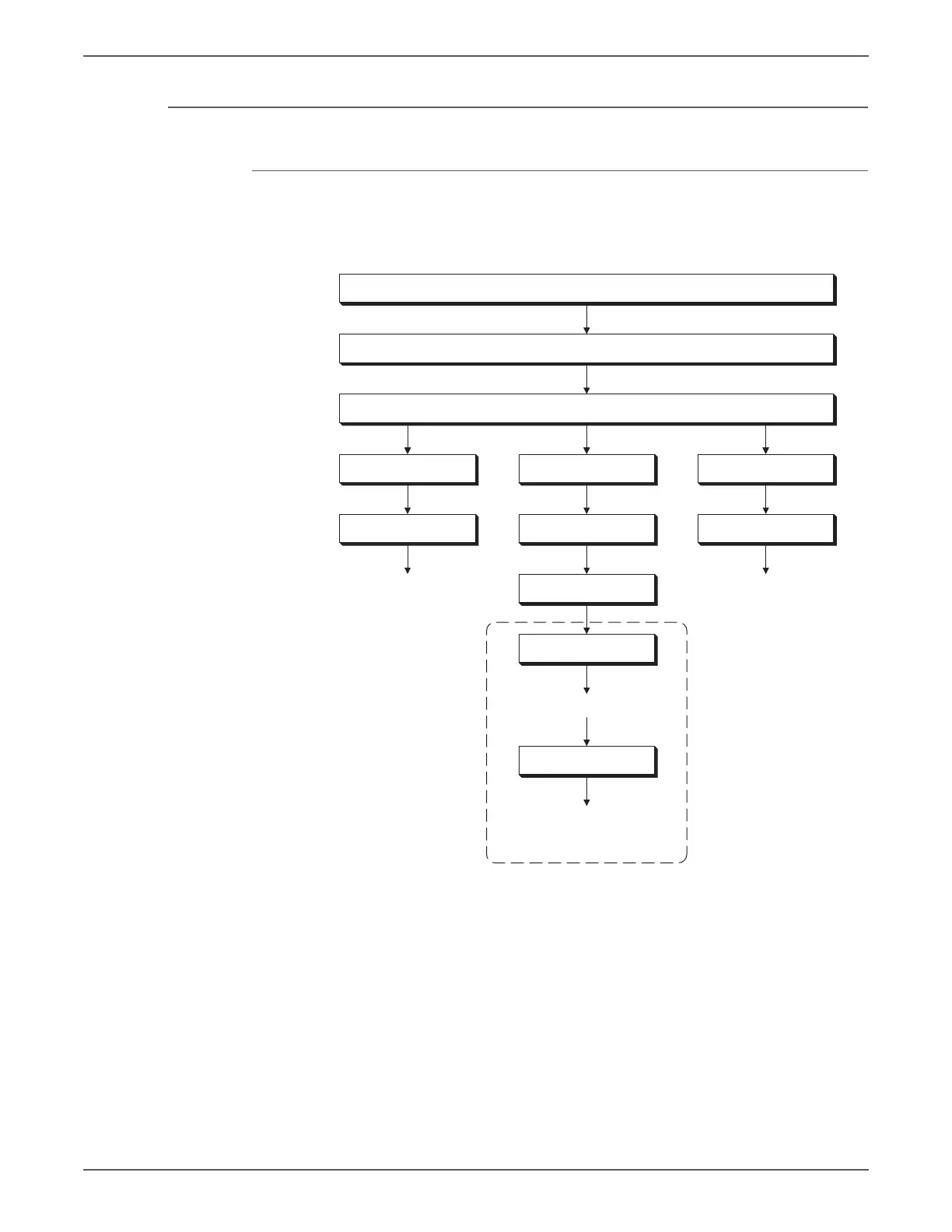

The torque of the ADF Motor is transferred to each Document Feeding Roller as
shown in the following diagram.
s6500-085
Automatic Document Feed Motor
Gear A
Gear B
Gear C
Gear D
Gear E
Gear F
Gear G
Spring Clutch
Gear J
Gear H
Gear I
[ Takeaway Roll ][ Exit Roll ]
[ Feed Roll ]
[ Nudger Roll ]
Feed Roller Assembly
[ Name of moving parts ]

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
