Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 5-47
Print-Quality Troubleshooting

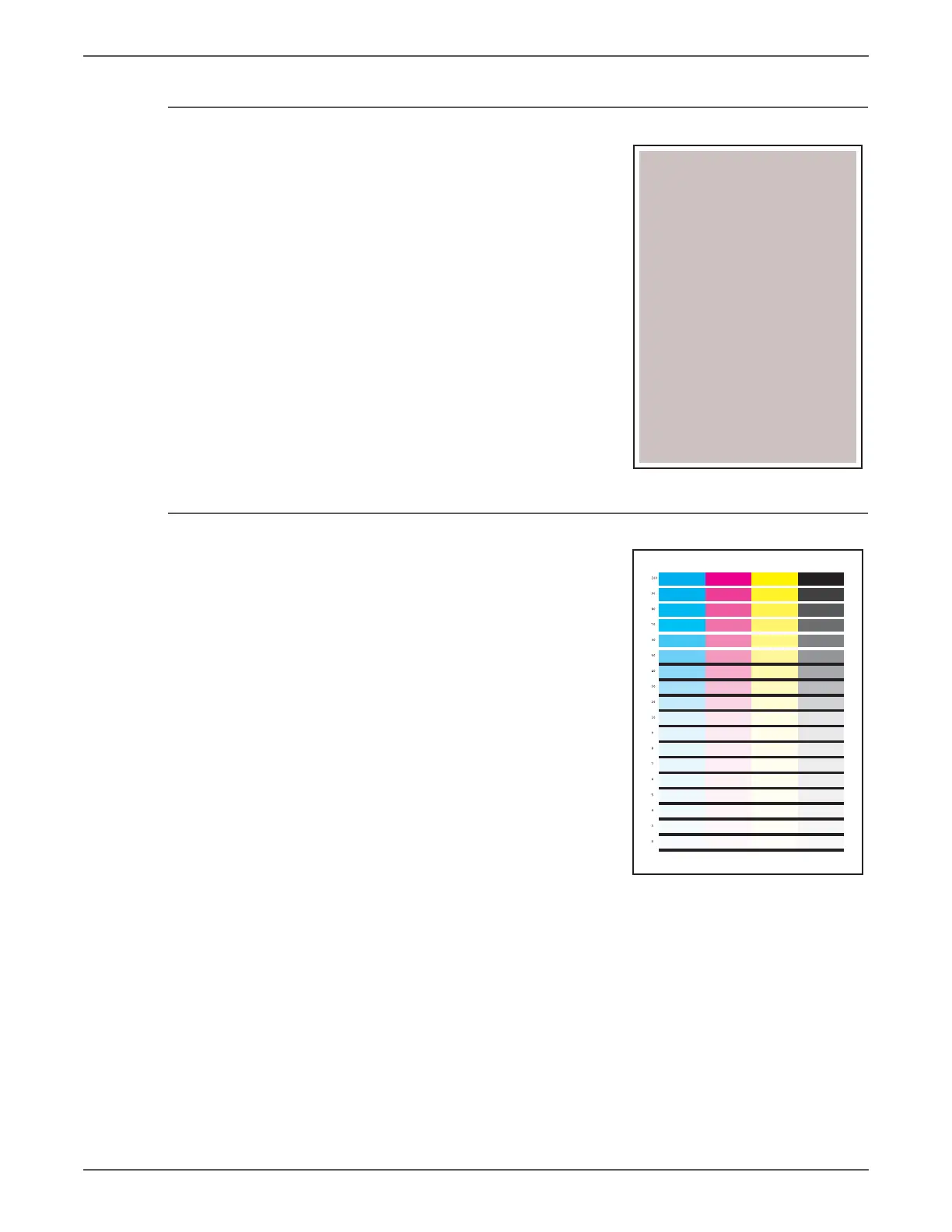

CMY 20% ESS Test Print
This test print provides 20% density for
combination of Cyan, Magenta, and Yellow
on the whole page. This test is used to
identify problems with balance of three
color toners or another toner. Compare the
print with this example to determine the
problem.
• Fail: Check the Cyan, Magenta, or
Yellow Toner Cartridge.
• Pass: Check the Black Toner Cartridge.
Gradation ESS Test Print
This test print provides 2 - 100% density for
Cyan, Magenta, Yellow, or Black on the
whole page. This test is used to identify
problems with the printer function or the
Image Processor Board. Compare the print
with this example to determine the
problem.
• Fail: Check the printer function.
• Pass: Check the Image Processor Board.
s6500-147
s6500-148

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
