Xerox WorkCentre 6505 Service Manual

8-148 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
MFP PHD XPRO Harness
PL 9.1.11 Harness Assy PHD XPRO
1. Perform the service preparation steps on page 8-3.
2. Remove the Laser Unit (page 8-92).
3. Unplug J144 from the EEPROM Board).
4. From the front of the printer, release the right, top, and left latches on the
Imaging Unit socket retainer, then remove the retainer from the rear of the
chassis.

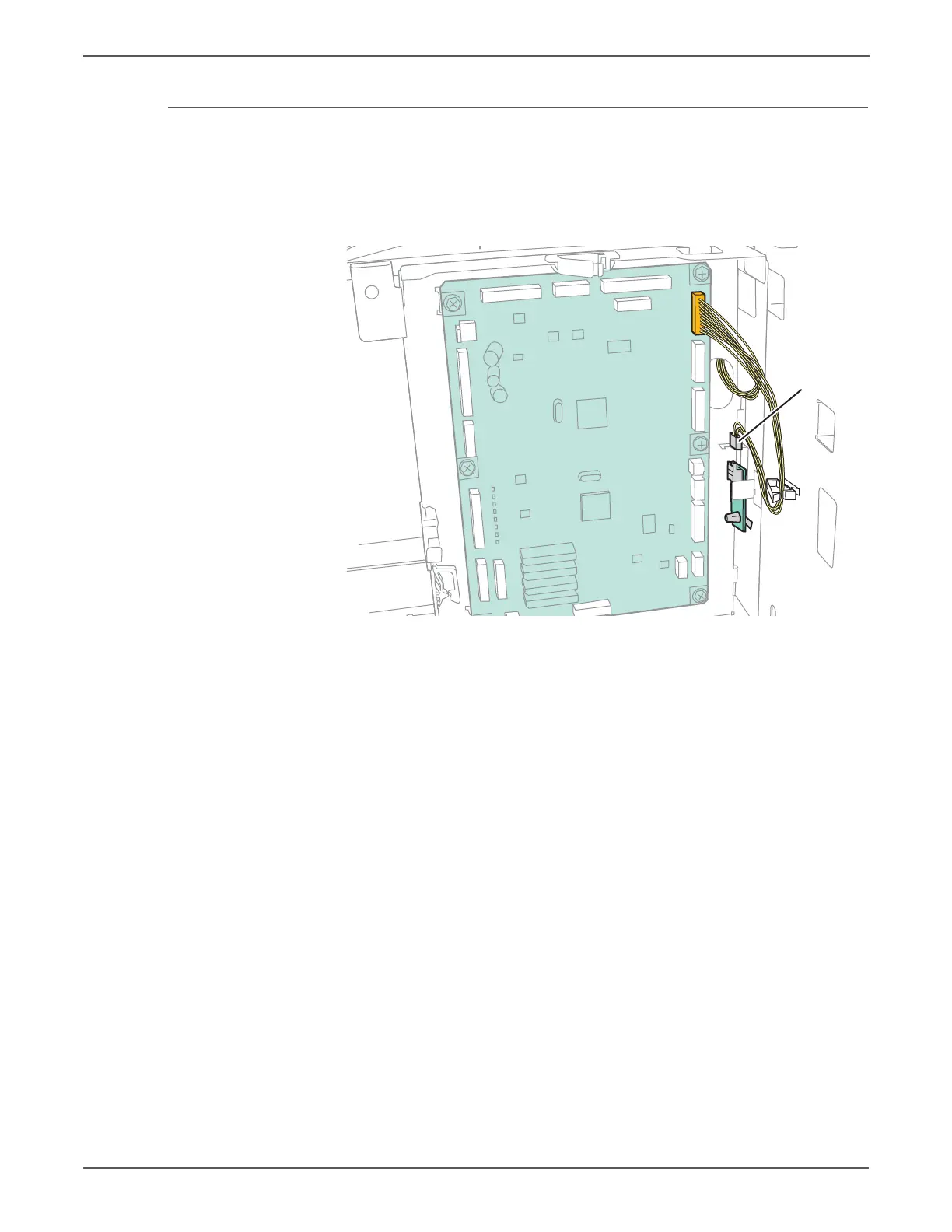

P/J144
s6505-501
